Name: CE ROHS Permanent Magnet DC Gear Motor 10 Nm Torque DC Motor
Brand: TYHE
Price: 1 USD

CE ROHS Permanent Magnet DC Gear Motor 10 Nm Torque DC Motor

Categories	Flat Gear Motor
Brand Name:	TYHE
Model Number:	TJP102FN
Certification:	CE/ROHS/ISO9001
Place of Origin:	China
MOQ:	500pcs
Price:	Negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	100000pcs per month
Delivery Time:	15 working days after payment
Packaging Details:	Foam wrapped, carton packed
Size:	102mm*60mm
Voltage:	12v 24v customized
Speed:	15-500rpm Customized
Torque:	5N.m
Gear material:	Steel gears
Commutation:	Brushed
Type:	Flat Gear Motor
Keywords:	China Factory Direct Sales 102*60mm Size 10N.M Torque Permanent Magnet 12v 24v Dc Geared Motor

Contact Now

Add to Cart

Company Info.

Wenzhou Tyhe Motor Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

CE ROHS Permanent Magnet DC Gear Motor 10 Nm Torque DC Motor

Products Description

China Factory Direct Sales 102*60mm Size 10N.M Torque Permanent Magnet 12v 24v Dc Geared Motor

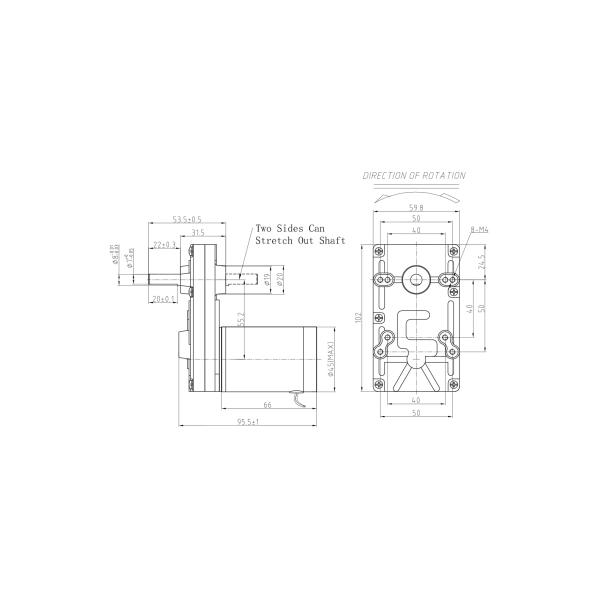

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY4564	12	3500	300	2800	1.08	27.50	8.06	62.50	82.50	7.50
ZY4564	12	5100	610	4080	2.19	38.00	16.23	61.89	114.00	15.25
ZY4564	12	6000	1100	4800	3.94	60.00	30.16	63.76	180.00	27.50
ZY4564	24	4500	280	3600	1.00	40.00	15.08	62.62	120.00	7.00
ZY4564	24	6000	500	4800	1.92	59.80	30.06	65.34	179.40	14.00
ZY4564	24	7000	570	5600	2.23	57.00	33.42	62.38	171.00	16.53
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters			12V-3500RPM Input				12V-5100RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
102	73	23.0	121.7	5.89	461.73	1385.18	177.4	11.85	638.02	1914.06
102	73	31.5	88.9	5.89	632.36	1897.09	129.5	11.85	873.81	2621.43
102	73	57.0	49.1	5.89	1144.28	3432.83	71.6	11.85	1581.18	4743.54
102	73	80.0	35.0	5.89	1606.00	4818.00	51.0	11.85	2219.20	6657.60
102	73	108.0	25.9	5.89	2168.10	6504.30	37.8	11.85	2995.92	8987.76
102	73	127.0	22.0	5.89	2549.53	7648.58	32.1	11.85	3522.98	10568.94
102	59	198.0	14.1	4.76	3212.55	9637.65	20.6	9.58	4439.16	13317.48
102	59	234.0	12.0	4.76	3796.65	11389.95	17.4	9.58	5246.28	15000.00
102	59	272.0	10.3	4.76	4413.20	13239.60	15.0	9.58	6098.24	15000.00
102	59	322.0	8.7	4.76	5224.45	15000.00	12.7	9.58	7219.24	15000.00
102	59	374.0	7.5	4.76	6068.15	15000.00	10.9	9.58	8385.08	15000.00
102	59	443.0	6.3	4.76	7187.68	15000.00	9.2	9.58	9932.06	15000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters			12V-6000RPM Input				24V-4500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
102	73	23.0	208.7	22.01	1007.40	3022.20	156.5	11.01	671.60	2014.80
102	73	31.5	152.4	22.01	1379.70	4139.10	114.3	11.01	919.80	2759.40
102	73	57.0	84.2	22.01	2496.60	7489.80	63.2	11.01	1664.40	4993.20
102	73	80.0	60.0	22.01	3504.00	10512.00	45.0	11.01	2336.00	7008.00
102	73	108.0	44.4	22.01	4730.40	14191.20	33.3	11.01	3153.60	9460.80
102	73	127.0	37.8	22.01	5562.60	15000.00	28.3	11.01	3708.40	11125.20
102	59	198.0	24.2	17.79	7009.20	15000.00	18.2	8.90	4672.80	14018.40
102	59	234.0	20.5	17.79	8283.60	15000.00	15.4	8.90	5522.40	15000.00
102	59	272.0	17.6	17.79	9628.80	15000.00	13.2	8.90	6419.20	15000.00
102	59	322.0	14.9	17.79	11398.80	15000.00	11.2	8.90	7599.20	15000.00
102	59	374.0	12.8	17.79	13239.60	15000.00	9.6	8.90	8826.40	15000.00
102	59	443.0	10.8	17.79	15000.00	15000.00	8.1	8.90	10454.80	15000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters			24V-6000RPM Input				24V-7000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
102	73	23.0	208.7	21.94	1004.04	3012.13	243.5	24.40	957.03	2871.09
102	73	31.5	152.4	21.94	1375.10	4125.30	177.8	24.40	1310.72	3932.15
102	73	57.0	84.2	21.94	2488.28	7464.83	98.2	24.40	2371.77	7115.31
102	73	80.0	60.0	21.94	3492.32	10476.96	70.0	24.40	3328.80	9986.40
102	73	108.0	44.4	21.94	4714.63	14143.90	51.9	24.40	4493.88	13481.64
102	73	127.0	37.8	21.94	5544.06	15000.00	44.1	24.40	5284.47	15000.00
102	59	198.0	24.2	17.73	6985.84	15000.00	28.3	19.72	6658.74	15000.00
102	59	234.0	20.5	17.73	8255.99	15000.00	23.9	19.72	7869.42	15000.00
102	59	272.0	17.6	17.73	9596.70	15000.00	20.6	19.72	9147.36	15000.00
102	59	322.0	14.9	17.73	11360.80	15000.00	17.4	19.72	10828.86	15000.00
102	59	374.0	12.8	17.73	13195.47	15000.00	15.0	19.72	12577.62	15000.00
102	59	443.0	10.8	17.73	15000.00	15000.00	12.6	19.72	14898.09	15000.00

Please let us know your requirements and we will provide you with transmission solutions.
