Categories | Welded Wire Mesh Panel |
---|---|
Brand Name: | HUAZE |
Certification: | ISO9001 |
Place of Origin: | CHINA |
MOQ: | 10000 pieces |
Price: | Negotiated |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20000 pieces a week |
Delivery Time: | 5 - 8 weeks |
Packaging Details: | 200 pieces a fumigation-free pallet |
Name: | Electro Galvanized Wire Welded Wire Mesh Panel 2 inch X 2 inch Wire Diameter 14 Gauge 1M X 2M |
Application: | Construction mesh, Fencing mesh |
Material: | Electro Galvanized |
Wire thickness: | 14 Gauge |
Mesh size: | 2 inch X 2 inch |
Length: | 2m |
Width: | 1m |
Packaging: | Fumigation-free pallet |

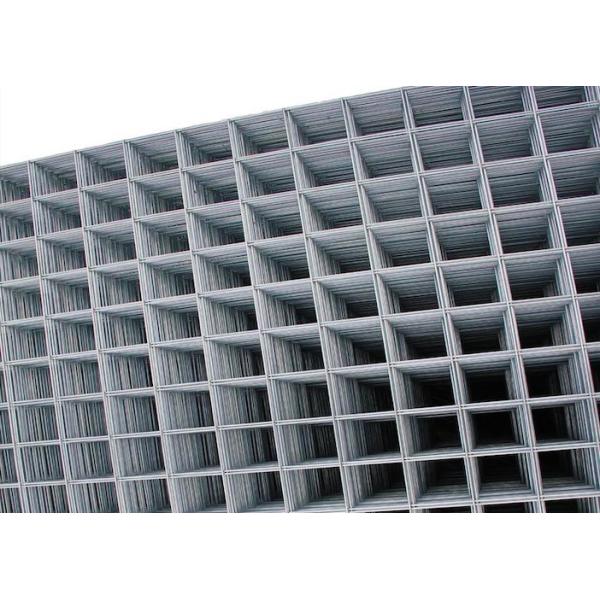

Electro Galvanized Wire Welded Wire Mesh Panel 2 inch X 2 inch Wire Diameter 14 Gauge 1M X 2M
Electro Galvanized Welded Wire Mesh Panel is made of superior quality electro galvanized steel wire. Welded wire mesh is used for reinforcement of ferroconcrete items or brickwork; it is used also as fencing, frames for greenhouse, cages for birds or animals etc.
The welded wire mesh has the following features:
Applications
Welded wire mesh is used in industry and agriculture, building,
transportation and mining for all such purposes as Poultry houses,
Egg baskets, Runway enclosures, Draining rack, Fruit drying screen,
fence screen.
Specification
Specification List of Welded Wire Mesh Panel | ||
Opening | Wire Diameter | |
In inch | In metric unit(mm) | |
1" x 1" | 25.4mmX25.4 | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
2" x 3" | 50mmx70mm | 2.0mm,2.5mm,1.65mm |
3" x 3" | 75mmx75mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" | 50mmx100mm | 2.11mm,2.5mm |
4" x 4" | 100mmx100mm | 2.0mm,2.5mm |
Technical Note: 1, Standard length: 1-8m; width: 0.5-3m |
Package
![]() |
