| Categories | Industrial Air Springs |
|---|---|
| Brand Name: | AIRSUSTECH |
| Model Number: | 215120H-1 |
| Certification: | ISO/TS16949, ISO9001 |
| Place of Origin: | Guangzhou, China |
| MOQ: | 3 pieces |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Delivery Time: | 3-8 Working Days |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Model NO.: | 188102H-1A |
| Warranty: | One Year |
| Pressure Ability: | 0.2-0.8 M PA |
| Bolts Number: | 6pcs |
| Top Plate Hole/Stud: | M10 |
| Bottom Plate Hole/Stud: | M10 |
| Top Bolts Dia.: | 164 mm |
| Bottom Bolts Dia: | 164 mm |
| Trademark: | Neutral |
| Transport Package: | Cartons |
| Specification: | 24*24*10 cm |
| Origin: | China |
| HS Code: | 8708809000 |
| Port: | Huangpu, China |
| Material: | Rubber and Iron |
| Position: | Front and Rear |
| OEM: | Yes |
| Type: | Suspension Air Spring |
| N.W.: | 3.0 Kg |
| Company Info. |
| Guangzhou Guomat Air Spring Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

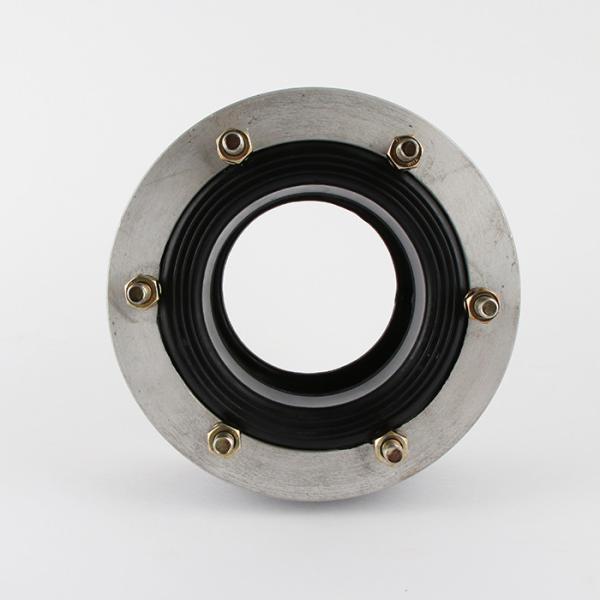

215120H-1 Technical parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth :M10*6pcs
Top Cover Distance Plate Screw (Nut) :164MM
Bottom Cover Plate Screw (Nut) Tooth :M10*6pcs
Screw Center Distance of Bottom Cover Plate : 164MM
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : /
Cover Plate
Top Cover Plate Diameter:195 mm
Bottom Cover Plate Diameter: 195 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 233 mm
Rubber Bellows Natural Diameter :210 mm
The Working Stroke : MAX 140 mm to MIN 42 mm
Maximum Height : 140 mm
Minimum Height :42 mm
Stroke Height : 98 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :NO Pieces of Girdle Hoop
| Bearing load Power (kg) | Inflation pressure | 0.2MPa | 0.3MPa | 0.4MPa | 0.5MPa | 0.6MPa | 0.7MPa | 0.8MPa | 0.7MPa Volume(dm³) |
|---|---|---|---|---|---|---|---|---|---|
| Installation height | |||||||||
| 42(mm) | 796 | 1124 | 1450 | 1779 | 2114 | 2459 | 2778 | 0.67 | |
| 59(mm) | 646 | 952 | 1257 | 1561 | 1875 | 2177 | 2483 | 1.27 | |
| 76(mm) | 514 | 783 | 1044 | 1324 | 1601 | 1860 | 2139 | 1.70 | |
| 93(mm) | 402 | 612 | 811 | 1039 | 1249 | 1477 | 1696 | 1.95 | |
| 112(mm) | 294 | 452 | 603 | 768 | 938 | 1109 | 1278 | 2.19 | |
| 130(mm) | 178 | 274 | 379 | 483 | 592 | 706 | 815 | 2.44 | |
| 144(mm) | 29 | 69 | 109 | 158 | 213 | 280 | 362 | 2.66 | |
| Stiffness and frequency at design height | Vertical stiffness(Kg/cm) | 120 | 162 | 205 | 261 | 307 | 355 | 401 | |
| Stiffness and frequency at design height | Natural frequency Hz | 3.20 | 2.99 | 2.92 | 2.92 | 2.86 | 2.83 | 2.80 | |
| Stiffness and frequency at design height | Natural frequency cpm | 192 | 179 | 175 | 175 | 171 | 169 | 168 |
Industrial Air Springs AIRSUSTECH 215120H-1 use for As The Cam Follower:



|
