| Categories | COFDM Wireless Transmitter |
|---|---|
| Brand Name: | Ding Shen |
| Model Number: | DS-HD5000 |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS per month |
| Delivery Time: | 3-7 days |
| Packaging Details: | export standard packing |
| Modulation:: | COFDM |
| Voltage:: | DC12V |
| LOS Distance:: | 100KM Max (on Helicopter) |
| Interface:: | HD/HD-SDI; BNC |
| NLOS Distancent:: | 2-6KM |
| Transfer Rate:: | 2/4/6/8Mbps(optional) |

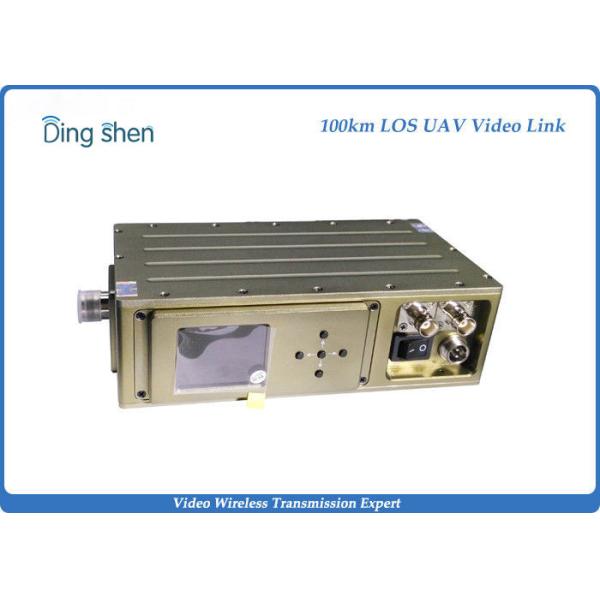

Low Latency HD COFDM Video Transmitter 300-900Mhz Manpck AV Sender with AES Encryption
Introduction:
This is special designed system is for UAV / Manpck long range distance transmission, it is also popular to use in other fields for live broadcast video audio transmission.
Transmitter Parameters:
| Frequency | 300-900MHz(adjustable),1.2G/2.4G/5.8GHz(customized) |
| RF output Power | 2-5Watt(adjustable) |
| Voltage | DC12V |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz |
| Bandwidth | 1.25/2.5/6/7/8MHz(optional) |
| Transfer rate | 2/4/6/8Mbps(optional) |
| FEC | 1/2,2/3,3/4,5/6,7/8(optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Video Input | 1 line PAL/NTSC analog video |
| Audio Input | Analog stereo left and right channels |
| Video Compression | H.264 |
| Latency | 400ms; can be customized 75ms |
| Data encryption | AES 265 bit / ALLTECH Basic scrambling |
| Flatness | ≤2dB(within full frequency range) , ≤0.5dB (within 8MHz) |
| Carrier | 2K,8K |
| Video Signal | 1Vp-p@75Ω,NTSC/PAL adaptive |
| Resolution | 1080P |
| RF Interface | N(F) |
| Video Format | PAL/NTSC(self-adaption) |
| AV Interface | HD/HD-SDI; BNC |
| Case Material | Aluminum alloy, waterproof |
| Built-in battery | 2300mA, 3Hrs |
| Work environment | -30~70° |
| NLOS Distance | 2-6KM (on ground) |
| LOS Distance | 100KM Max (on helicopter) |
| Size | 180*100*60mm |
| Weight | 1444g(net weight) |
Receiver Parameters:
| Frequency | 300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized) |
| Memory | 60G, 1way 48hours recording |
| LCD monitor | 7inch or 9.5 inch |
| Receive sensitivity | < -105dBm |
| RF Interface | N(F) |
| Modulation | COFDM |
| Power supply | AC220V |
| Bandwidth | 2/2.5/4/8MHz(adjustable) |
| Constellation | QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz |
| FEC | 1/2,2/3,3/4,5/6,7/8(optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Video Output | 1 line PAL/NTSC analog video |
| Revolution | 720×576(PAL) , 720×480(NTSC) |
| Lines of horizontal | 625 or 525 Line |
| Audio Output | Analog stereo left and right channels |
| Data encryption | AES 265 bit / ALLTECH Basic scrambling |
| Voltage | AC220V±20V, DC14V~DC16V |
| Work environment | -30~70° |
| Size | 370*490*220mm |
| Weiht | 18kg |



|
