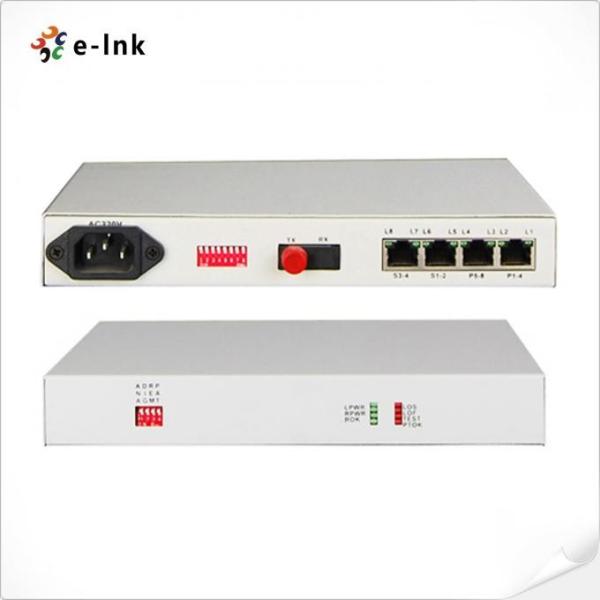

Name: 4Ch 100M FC Ethernet Fiber Optic Telephone Lines FXO FXS
Brand: E-link
Price: 5 USD

Home >

4Ch 100M FC Ethernet Fiber Optic Telephone Lines FXO FXS

Categories	Fiber Optic Accessories
Brand Name:	E-link
Model Number:	LNK-PH04-E
Certification:	CE
Place of Origin:	China
MOQ:	1pcs
Price:	$5-269
Payment Terms:	L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	1000000PCS/Month
Delivery Time:	7-10 working days
Packaging Details:	Ethernet Fiber Optic Telephone Standard Carton Packaging
Wavelength:	850, 1310 or 1550nm optional
Mean Transmit Power:	≥-25dBm(multimode, 1310nm)
Receiver Sensitivity:	≤-36dBm
Connector Type:	FC/SC optional; single mode/multimode optional; single-strand/dual-strand optional.
Ethernet Interface Rate:	10M/100M adaptive
Voice encoding:	PCM encoding, 64Kbps per line

Contact Now

Add to Cart

Company Info.

E-link China Technology Co.,LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

4-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC

Ethernet Fiber Optic Telephone Advantages:

1~4Channel voice, 1~8Channel switch or two/four line audio and so on

Ethernet interface supports 10M/100M, half/full duplex auto- adaptable and VLAN

The transmission distance is up to 2-120Km without interruption

Technical Indexes

Parameter	Specifications
Optical Interface	Wavelength: 850, 1310 or 1550nm optional Mean Transmit Power: ≥-8dBm(single mode, 1310nm) ≥-18dBm(multimode, 850nm) ≥-25dBm(multimode, 1310nm) Receiver Sensitivity: ≤-36dBm Connector Type: FC/SC optional; single mode/multimode optional; single-strand/dual-strand optional.
Ethernet Interface	Ethernet Interface Rate: 10M/100M adaptive, 10M half-duplex, 10M full-duplex, 100 M half-duplex or 100M full-duplex optional Compatible Protocol: IEEE802.3 Transmission Rate: 100M
FXO (FXS) Telephone Interface	Relay Interface (FXO): Connected to switch User Interface (FXS): connect users’ telephone

Application

LNK-PH04-E is a new generation 4-Ch Telephone Fiber Mux. It can provide a 4-line voice interface and 1-line 10/100M

Ethernet Interface directly upon the optical transmission.

Ordering Information

Model	Description
LNK-PH04-E	4-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode, Single Fiber (One Core), 20KM, AC 220V
