| Categories | NEW Concrete Pump |
|---|---|
| Place of Origin: | Hunan, China |
| Brand Name: | ACHIEVE |
| Certification: | EXPORT |
| Supply Ability: | 5 Unit/Units per Month |
| Price: | $10,999.00 - $12,999.00/Units |
| Applicable Industries: | Construction works , Concrete Pumping |
| Showroom Location: | None |
| Condition: | New |
| Power Type: | Diesel |
| Weight: | 1500KGS |
| Warranty: | 1 Year |
| UNIQUE SELLING POINT: | Easy Maintenance |
| Max. vertical conveying distance: | 100M |
| Max. horizontal conveying distance: | 500M |
| Productivity: | 58M3/H |
| Machinery Test Report: | Not Available |
| Video outgoing-inspection: | Provided |
| Marketing Type: | New Product 2021 |
| Warranty of core components: | 1 Year |
| Core Components: | Motor, Bearing, Gear, Pump |
| Brand: | ACHIEVE |
| OEM: | PUTZMEISTER |
| After Warranty Service: | Video technical support, Online support, Field maintenance and repair service |
| Local Service Location: | None |
| After-sales Service Provided: | Video technical support, Field installation, commissioning and training, Online support |
| Company Info. |
| Achieve Innovations (Changsha) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

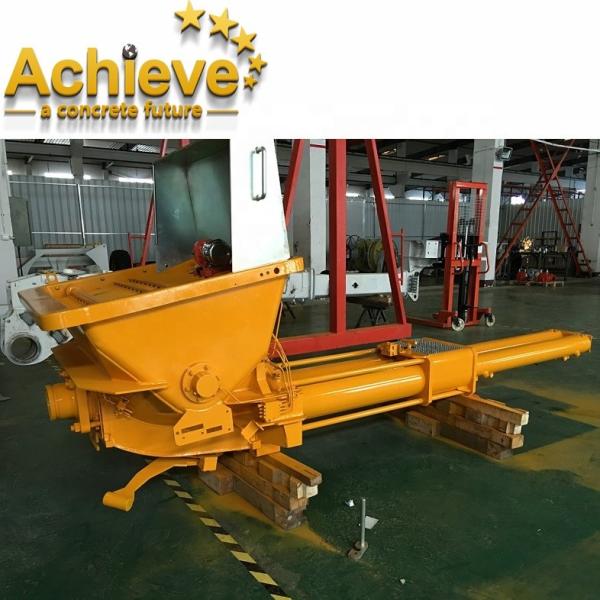

TK70 Concrete Pump Pumping System Module for Putzmeister TK40/TK50/TK60/TK70
TK70 Concrete Pump Pumping System Module for Putzmeister TK40/TK50/TK60/TK70
Technical Data Sheet
| NO.1 | ITEM | SPECIFICATION |
| 1 | Model | TK70 |
| 2 | Maimum Concrete Volumn Output | 74yd3/hr (57m3/hr) |
| 3 | Max. Concrete Pumping Pressure | 1,130 psi (78bar) |
| 4 | Maximum Aggregate Size | 1.50” (38mm) |
| 5 | Diesel Engine Model | Cummins/Duetz |
| 6 | Horse Power | 100 hp (75kw) |
| 7 | Material Cylinders | 7” x 39” (180x1,000 mm) |
| 8 | Maximum Stokes per minute | 31 |
| 9 | Variable Volume Control | 0 to Full |
| 10 | S-Valve (cast) | 7” x 5” (180x125mm) |
| 11 | Number of Shift Cylinders | 2 |
| 12 | Hydraulic Tank Capacity | 44 gal (167L) |
| 13 | Hopper Height | 49” (1,245mm) |
| 14 | Hopper Capacity | 9.5 cu ft (270L) |
| 15 | Outlet Diameter | 5” HD (125mm) |
| 16 | Cable + Radio Remote Controled (Optional with HBC or AUTEC) | |
| 17 | Aluminum Hpper Cover + Hopper grate + Vibrator motor | |
TK70 Concrete Pump Pumping System Module for Putzmeister TK40/TK50/TK60/TK70
TK70 Concrete Pump Pumping System Module for Putzmeister TK40/TK50/TK60/TK70
PUTZMEISTER / SCHWING / CIFA / ZOOMLION / SANY Pumping System Customized are all available! Contact us soon to get your pump!^^
|
