| Categories | Outdoor Fiber Optic Cable |
|---|---|
| Brand Name: | JQ/OEM |
| Model Number: | GYXTW-12B1 |
| Certification: | ISO9001 ROHS CE FCC SDOC |
| Place of Origin: | Guangzhou China |
| MOQ: | 1km |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Per day |
| Delivery Time: | 3-5dyas |
| Packaging Details: | 1/2/3/4/5 km in one wooden drum |
| Jacket material: | PE |
| Outer diameter: | 6/7/8/9mm |
| Steel wire: | 0.7/0.8/1.0mm |
| Color: | Black |
| Fiber count: | 2-24 Core |
| Structure: | Unit tube |
| Strength member: | Two steel wire |
| Installation: | Aerial &Duct |
| Product name: | GYXTW Optic Fiber Cable |
| Fiber type: | YOFC or as request |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Single mode Multi mode Fibra Optica Cable Types Fiber Optic Cable GYXTW
| Items | Unit | Specification | |
| Single mode G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Features:
1.Small outer diameter, light weight and convenient construction
2.Stable fiber excess length control Excellent environmental performance
3.After the cable is formed, the additional attenuation of the fiber is almost zero,the dispersion value does not change
Application
Suitable for Duct / Aerial
Storage / Operating Temperature: -40℃~+70℃
Cable Parameters
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250μm+15μm |
| Color | Blue,Orange,Green,Brown,Gray,White | |
| Loose Tube | Dimension | 2.0mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
Technical Parameters
| Fiber Count | Cable Diameter(mm) | Cable Weight kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic |
| 2~12 | 8 | 78 | 1000/3000 | 1000/3000 | 10D/20D |
| 14~24 | 10 | 90 | 1000/3000 | 1000/3000 | 10D/20D Features |
Different diameter
Packing

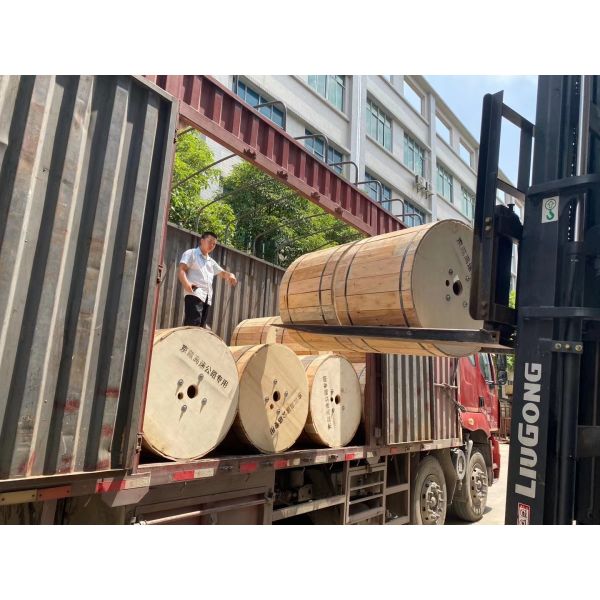

1/2/3/4/5 km in one wooden drum,deliver days:3-5work days
Shipping
By sea/by air or express delivery,it depends on the order quantity
OEM Service support to printing your company logo,year,meter metion.
|
