24 Core GYFTY63 Underground Fiber Optic Cable multimode Loose tube

Categories	Underground Fiber Optic Cable
Brand Name:	JQ/OEM
Model Number:	GYFTY63-24B1.3
Certification:	ISO9001 ROHS CE FCC
Place of Origin:	Guangzhou,China
MOQ:	1km
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30km per day
Delivery Time:	5-8 work days
Packaging Details:	wooden drum
Fiber count:	2-288 Cores
Fiber type:	single mode/multi mode
Jacket:	Double PE,MDPE,HDPE shealth
Color:	Black
Product name:	Anti Rodent Direct Buried Optical fiber Cable
Structure:	Loose tube
Installation:	Duct or directly burry
Strength member:	FRP
Oem:	Available

Contact Now

Add to Cart

Company Info.

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

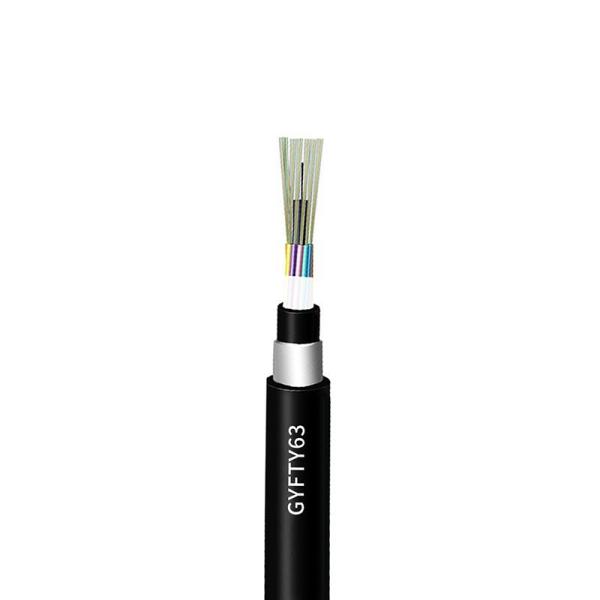

24 Core GYFTY63 Underground Fiber Optic Cable multimode Loose tube

Double Jacket Single mode Anti-rodent 24 Core fiber optic cable GYFTY63

Features

* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* Crush resistance and flexibility
* The following measures are taken to ensure the cable watertight:
* Single Fiber Reinforced Plastic as the central strength member
* Loose tube filling compound
* 100% cable core filling
* PSP enhancing moisture-proof
* Water-blocking material

Application

1. Direct burial

2. Underground

3. Backbone Internet

Optical Characteristics

		G.652D	50/125um	625/125μm
Attenuation	@850nm		≤3.0dB/km	≤3.0dB/km
(+20°C)	@1300nm		≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km
	@1550nm	≤0.22dB/km
Bandwidth(ClassA)	@850nm		2500MHzkm	2200MHz:km
	@1300nm		21000MHz-km	2600MHzkm
NumericalAperture			0.200+0.015NA	0.275+0.015NA
CableCut- offWavelengthλcc		≤1260nm

Technical Data

Fiber count	Nominal Diameter(mm)	Nominal weight(kg/km)	Max Fibers per Tube	No.of (Tube+fillers)	AllowableTensile Load (N/100mm)		Allowable Crush Resistance(N/100mm)
Fiber count	Nominal Diameter(mm)	Nominal weight(kg/km)	Max Fibers per Tube	No.of (Tube+fillers)	short Term	long term	short Term	long term
2~36	10.2	125	12	6	3000	1000	3000	1000
36~72	15.1	212	12	6	3000	1000	3000	1000
74~96	16.3	246	12	8	3000	1000	3000	1000
98~120	17.8	288	12	10	3000	1000	3000	1000
122~144	19.4	336	12	12	3000	1000	3000	1000
>144	Design according to the customer request

Product Tags:

24 Core Underground Fiber Optic Cable

multimode Underground Fiber Optic Cable

multimode direct burial fiber cable

24 Core GYFTY63 Underground Fiber Optic Cable multimode Loose tube
