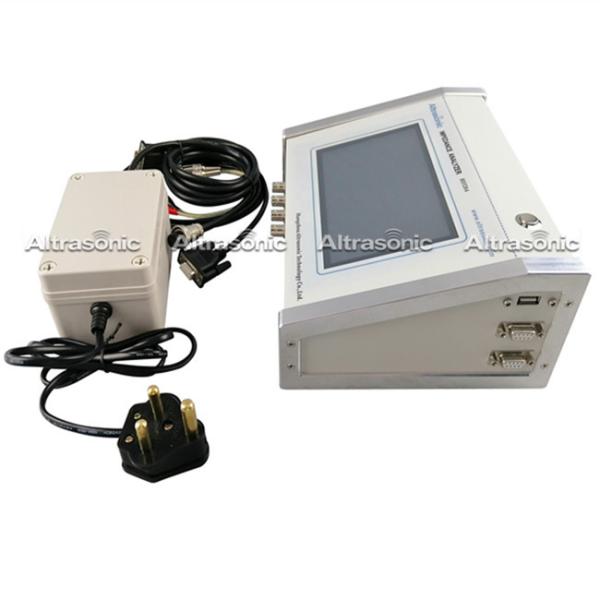

Ultrasonic Impedance Analyzer For Transducer 1KHz~500KHz hz 5Mhz

Categories Measuring Instrument
Brand Name: Altrasonic
Model Number: HS520A (Newest)
Certification: CE
Place of Origin: China
MOQ: 1
Price: negotiable
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Delivery Time: 3 days
Packaging Details: carton
Part Name: Impedance Analyzer
Frequency Range: 1KHz~500KHz/hz/5Mhz
Frequency Accuracy: ±10 Ppm
Amplification: Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic
Net Weight: 3.5kg
Dimensions: 240*190*100mm
Speed Of Measuring: 0.5s / One Pass
Phase Accuracy: 0.15 degree
Impedance Range: 0.1Ω~1MΩ
Frequency Step: 0.1Hz to Any
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Ultrasonic Impedance Analyzer For Transducer 1KHz~500KHz hz 5Mhz

Factory price ultrasonic impedance analyzer tester for transducer 1KHz~500KHz/hz/5Mhz

Specification


Product nameUltrasonic impedance analyzer
Frequency range1kHz~500kHz
Measurement IndexAll the parameters, the graph
Measurement Accuracy<0.5%
Frequency Accuracy±10ppm
Impedance Range1Ω~1MΩ
Frequency Step0.1Hz~Any

The parameters that can be measured by impedance analyzer:


Static capacitance
Resonant frequency
Anti resonance frequency
Mechanical Quality Factor
Minimum impedance
Maximum impedance
Impedance phase
Frequency bandwidth
Electromechanical Coupling Coefficient


Application:


This is characteristic of analyzer measurement and evaluation of piezoelectric ceramics, piezoelectric transducer, ultrasonic cleaning machine, ultrasonic welding machine, ultrasonic grinder, ultrasonic machining equioment and other deivces, like transducer, booster, horn, the device parameters and performance.
