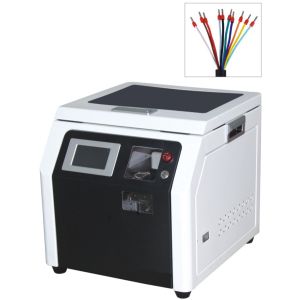

Tubular Wire Ferrule Terminal Auto Feeding Pressing Machine With Wire Stripping Feature
Intro:
This crimping machine is suitable for tubular type terminals pressing. It can auto sensing, stripping, inserting terminals, pressing, and feeding. It is a semi-automatic type press machine, manually putting wires.
Machine video: https://youtu.be/JKGcNsu1MtQ
Suitable:
| Model | RS-0525 Insulated Tubular Terminals Pressing Machine |
| Specification | 0.5mm -2.5mm (terminal conduit length 12mm or less) 4.0mm (terminal conduit length 10mm or less) |
| Detect device | terminal supply detection, device lack |
| Drive Mode | Driving mode motor/imported ball screw control method |
| Control Mode | ouch screen and programmable controller, MOONS drive |
| Wire Clamping device | Wire clamping device motor drive, clamping force program control |
| Crimping Device | motor drive, crimping force program control |
| Storage capacity | 100 kinds of cable crimping data |
| Pneumatic device | Pneumatic device SMC solenoid valve, SMC cylinder |
| Power supply | 220V, 50HZ/60HZ |
| Gas source | 0.6~0.8Mpa (please use clean and dry air source) |
| Size | L450mm * W350MM * H425mm |
| Weight | About 68KG |


|
