| Categories | Fiber Termination Kits |
|---|---|
| Brand Name: | Hicorpwell |
| Model Number: | HCW-Piston 96 |
| Certification: | CCC & CE |
| Place of Origin: | Shenzhen |
| MOQ: | 1 pcs |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets Per Week |
| Delivery Time: | 10-15working days |
| Packaging Details: | overall dimension (mm):124*12*12 mm |
| Stepper motor step angle(°): | 1.8 |
| Motor current (A): | 1.5 |
| Life Cycle: | 1 million |
| Accuracy of suction and drainage: | 2.0% |
| Center distance between adjacent channels: | 9.0mm |
| Working preSsure: | 0.2Mpa |
| Thread Interface Form: | M5 |
| overall dimension (mm): | 217*88*44 |
| Company Info. |
| Shenzhen Hicorpwell Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

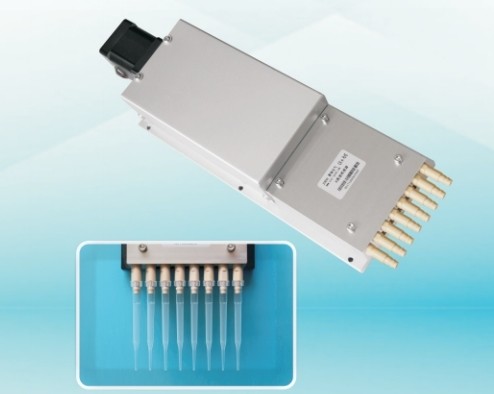

1. A set of driving mechanism drives the multi-syringes to realize multi-channel simultaneous suction and drainage. The single plunger structure has long stroke, high control precision and long service life.
2. The disposable Tip can be inserted directly to avoid carrying pollution caused by traditional sampling methods.
3. Multi-channel integration, saving space and cost;
Channels can be selected from 1 to 96 channels in different quantities. Specifications and sizes can be customized to meet customers' needs.
Application :
It is mainly used in situations requiring simultaneous control of multi-channel fluids, such as chemiluminescence, nucleic acid extraction, molecular hybridization, sample preparation, gene sequencing and other automatic analyzers.
| Specification | 250ul | 650ul |
| Trip (mm) | 25 | 65 |
| Screw lead (mm) | 1.5875 | 2.54 |
| Stepper motor step angle(°) | 1.8 | 1.8 |
| Motor current (A) | 1.5 | 1.5 |
| Linear distance per step of motor (mm) | 0.0079375 | 0.0127 |
| Fluid volume per step of motor (ul/step) | 0.079375 | 0.12927025 |
| Accuracy of suction and drainage | 2.0% | 2.0% |
| CV | 1.0% | 1.0% |
| Life cycle(million) | 100 | 100 |
| Working pressure | 0.5MPa | 0.5MPa |
| Number of threaded interface (pcs ) | 1 | 1 |
| Center distance between adjacent channels | 9MM | 9MM |
| Thread Interface Form | M5 | M5 |
| overall dimension (mm) | 217*88*44 | 262.6*90*43.8 |
Remark:
Note 1: The nominal accuracy of suction and drainage is measured at a range of no less than 2% displacement.
Note 2: The nominal repetition accuracy is measured at a range of no less than 2% displacement.
Note 2: The above parameters can be customized according to the actual situation.
|
