Guis65 Needle Bearing Universal Joint 1-37300004-0 46 X 136mm

Categories	Universal Joint Bearing
Brand Name:	QRL
Model Number:	GUIS-65
Certification:	ISO9001
Place of Origin:	CHINA
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	7000pcs
Delivery Time:	12 days
Packaging Details:	Oem/Neutral
Type::	Universal Joint Beairng
NO::	GUIS-65
Oem:	1-37300004-0
Size:	46X136 mm
Service::	OEM and After-sale Service
Product name:	Needle
Application:	For Isuzu Fvr
Weight:	2.12KG

Contact Now

Add to Cart

Company Info.

Guangzhou Zhonglu Automobile Bearing Co., LTD

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

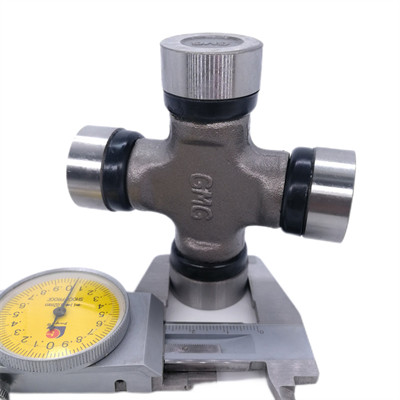

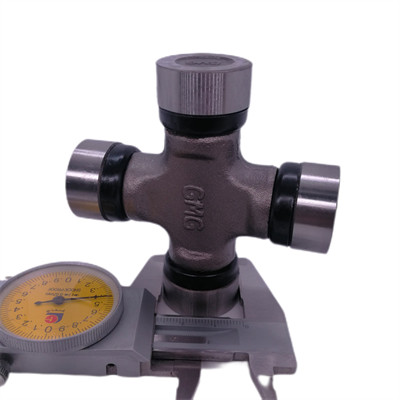

Guis65 Needle Bearing Universal Joint 1-37300004-0 46 X 136mm

For Isuzu Fvr Guis65 Universal Joint Bearing 46 X 136 MM

Universal Joint Bearing Specification

Product Name	For Isuzu Fvr Guis65 Universal Joint Bearing 46 X 136 Mm
Model Number	GUIS65
Size	46X136MM
Product Material	Chrome steel
Precision Grade	P0 P6 P5 P4 P2 are all available
Cage Material	steel , brass , nylon
Serive	Agent, OEM ,customized
Delivery Time	Generally it is 2-5 datys if in stock,7-15 days if not stock,or it is according to customer's requirements
Features	Long life and high quality
	High precision , low noise with strict controling of the quality
	High loading by the advanced high-technical design
	Most competitive price , factory direct
	OEM service offered ,to meet the customer's requrements
Price Terms	EXW, FOB, CFR, CIF
Package	PE bag+paper box+outer carton+wooden box+pallet, or as customers' requirement

Universal Joint Bearing Description

Structure Universal joint consists of spider(cross) and 4 grease-filled roller bearings. It can transmit large torque at low friction. Spider with journal pegs and bearing cases as outer ring were hot forged or cold formed and machined. They are later carburized in furnace so that increased ruggedness and wear resistance are obtained. Parts are finally ground to designed size under severe tolerance. Oil seal as well as dust cover are also in use to protect internal journal area from intrusion of foreign material. Variety of grades and materials are selected to respond to extreme conditions such as very hot / very cold temperatures.

Universal Joint Bearing Product number

ISUZU
NO.	FIG	ORIGINAL NO.	GMB NO.	ASSY SIZE			SNAP	NET	GROSS
				φ(D)	(O)	(L)	RINGS	WEIGHT	WEIGHT
				m/m	m/m	m/m
1	C	1-37300-069-0	GUIS-72	42		115	2.0×46	1650	1700
2	B	9-37300-017	GUIS-51	28.82		61.3	1.5×27.4	300	310
3	F	9-37300-065	GUIS-52	29	53		1.5×31.0	540	550
4	K	9-37300-150	GUIS-55	42		125	PLATE	2000	2050
5	B	9-37300-609	GUIS-56	23.82		61.3	1.5×27.4	300	310
6	K	9-37300-163	GUIS-57	48		145	PLATE	3500	3600
7	K	9-37300-112	GUIS-58	36		97	PLATE	1270	1310
8	B	44135-060	GUIS-59	20.5		56.5	1.2×23.0	200	210
9	M	9-37300-139-0	GUIS-60	49.22		148.38		3200	3300
10	B	9-37300-031	GUIS-61	23.82		61.3	1.5×27.4	300	310
11	C	1-37300-0130	GUIS-62	35		103.92	2.0×40.5	1150	1190
12	P	94207232-1	GUIS-63	22.06		59		270	280
13	C	1-37300-047-0	GUIS-64	40		115	2.0×43.3	1510	1560
14	K	1-37300-004-0	GUIS-65	45.98		136	PLATE	2800	2900
15	C	5-37300-032-0	GUIS-66	33		93	2.1×35.5	850	890
16	M	1-37300-049-0	GUIS-67	56		174		3900	4000
17	K	1-37300-082-0	GUIS-68	50		155	PLATE	3500	3600
18	B	8-94376-373-0	GUIS-69	27		81.75	1.5×30.0	500	520
19	F	8-97071-811-0	GUIS-70	29	53		1.5×31.0	540	550
20	F	8-94238-930-1	GUIS-71	29	53		1.5×31.0	540	580
21	C	1-37300-102-0	GUIS-72	42		115	2.0×46.0	1650	1700

Universal Joint Bearing Delivery

Before the contract is placed, the Payment, LASER MARK, plastic bag, box, sticker, carton, carton mark, pallet should be discussed into details. After the order is placed, the products must be manufactured as description. Best quality with acceptable price is our service for all customers. as the deadline is coming, after the payment, the packed goods would be sent to the right place.
