| Categories | LED Fluorescent Microscope |
|---|---|
| Brand Name: | Phidix |
| Model Number: | M15103 |
| Certification: | IATF16949，CE |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 PCS/Month |
| Delivery Time: | 15-20 Work Days |
| Packaging Details: | 1 PC/Carton |
| Color: | White |
| Customization: | OEM, ODM |
| Packing: | 1 PC/Carton |
| Warranty: | 1 year |
| Drawtube: | Trinocular |
| Theory: | Fluorescence Microscope |
| Lead-time: | 15-20 Work Days |
| Optical system: | Infinity Plan Achromatic Optical System |
| Magnification: | 40X-1000X |
| Eyepiece: | WF10X/22mm |
| Objective: | 4X/10X/40X/100X |
| Nosepiece: | Four/Five Position |
| Focusing: | Coaxial Coarse And Fine Focusing |
| Illumination: | LED Transmitted Illumination |
| Application: | Biology, Cytology, Oncology, Genetics, Immunology. |

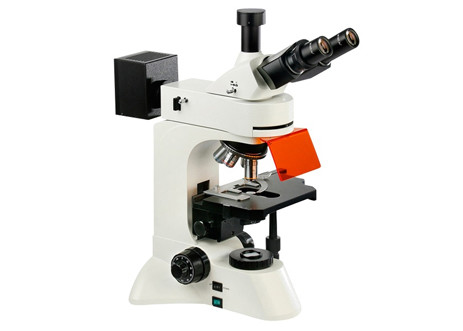

Infinity Led Fluorescence Microscope
M15103 Infinity Led Fluorescence Microscope M15103 is an epi-fluorescence microscope with LED illumination for fluorescence and transmitted illumination.
Features:
- LED illumination for fluorescence ensuring safety and long working life. It don‘t need cooling for restart.
- It can be used to for biology, cytology, oncology, genetics and immunology.
| Item | Description / Value |
| Optical system: | Infinity plan achromatic optical system. |
| Observation: | Bright field and Fluorescence. |
| View tube: | Trinocular, 30 ° inclined, 360° rotation. IPD adjustment: 54mm ~ 75mm. Diopter adjustment: ± 5 diopters. |
| Eyepiece: | High eye level wide field WF 10 × (Φ22mm). |
| Objective: | Infinity Plan achromatic fluorescence objective: 4X/0.1, 10X/0.25, 40X/0.65(Spr.), 100X/1.25(Spr., Oil.), Optional: 20X |
| Nosepiece: | Standard: Four-position/quadruple. Optional: Five-position/quintuple |
| Stage: | Double layer mechanical stage, well-coated coaxial with right hand low drive control. Stage size: 210× 142mm. Traveling range(X-Y): 75mm ×50mm. Double specimen holder, with specimen position scale (graduation reading up to 0.1mm). With XY movement stopper. |
| Focusing: | Coaxial coarse and fine focusing system. Knobs on both sides. Tension adjustment of coarse regulation knob. High sensitive fine focusing knob with minimum adjustment graduation 1um. |
| Condenser: | NA1.25.With aperture iris diaphragm. |
| Illumination system: | High light long working life LED lamp for transmitted illumination, brightness adjustable. |
| Fluorescence Kit: | Mercury lamp: 100W/DC for fluorescence illumination. Fluorescence filter: Optional Blue: 420-485nm. Green: 460-550nm. UV: 330-400nm. V: 95-415nm. |
| Camera adapter: | 0.5X or 1X C-Mount. |
| Camera: | Optional |
| Power supply: | AC100-240V, 50/60Hz. |
|
