| Categories | FFC FPC Connector |
|---|---|
| Brand Name: | XTKCONN |
| Model Number: | FPC**-L*T1-0000-A |
| Certification: | CE,SGS,ROHS,ISO9001 |
| Place of Origin: | Guangdong,China |
| MOQ: | 500pcs |
| Price: | Negotiable price |
| Payment Terms: | L/C, T/T,Payyal |
| Supply Ability: | 4KK pcs |
| Delivery Time: | 5-7 days |
| Packaging Details: | vacuum package,boxes in carton |
| Pitch: | 1.0mm |
| Type: | ZIF S/A Reverse Type |
| Positions: | 4-50pin |
| Lock Type: | Slide lock |
| Plating: | Tin-plating |
| Terminal/Contact: | Copper alloy |
| Company Info. |
| Shenzhen Xietaikang Precision Electronic Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

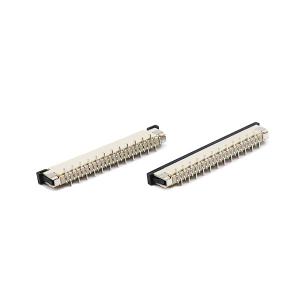

Vertical Type FFC FPC Connector Pitch 1.0mm Electrical Wire Connectors
Xietaikang’s FFC(Flexible Flat Cable) / FPC(Flexible Printed Circuit) connectors with wide variety of product line-up offer the best combination of signal reliability, compactness, wide circuit size range and cable style choices of any similar version in the market.
Super-fine pitch and small-size FFC/FPC Connectors with ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.
Description
This Series are 1.0mm pitch, ZIF, vertical FFC/FPC Connectors, which are available in SMT types. The SMT type can be packed with tape and reel for automatic mounting.
| Pitch | 1.0mm |
| No. Of Positions | 4-50pin |
| Mounting Type | Vertical / ZIF |
| Contact Location | Single-sided contact |
| Type | Slide lock |
| Current Rating | 0.5A/Pin Max |
| Voltage Rating | 50V AC/DC MAX |
| Withstanding Voltage | 250V AC,1min |
| Cover Material | LCP UL94V-0 black |
| Housing | LCP UL94V-0 Natural |
| Terminal/Contact | Copper alloy |
| Plating | Tin-plating |
| Operation Temperature | -40℃ to +85℃ |
| Lead Time | 7-10 working Days |
Design &Technical strength
We have many more than 20years experience in connector industry
engineer can support your new
project.Design a new tooling time:30-45 workdays.
Competitive Advantage
Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
customer firstly ,100% test, 0 defect, short lead time are our best advantages
|
