Factory Direct Supply Rubber Profiles Extrusion Line with Cold Feed Design Multi-row Pins and Low Extrusion Temperature

Factory Direct Supply Rubber Profiles Extrusion Line with Cold Feed Design Multi-row Pins and Low Extrusion Temperature

Factory Direct Supply Rubber Profiles Extrusion Line with Cold Feed Design Multi-row Pins and Low Extrusion Temperature
Factory Direct Supply Rubber Profiles Extrusion Line with Cold Feed Design Multi-row Pins and Low Extrusion Temperature
Categories Rubber Extruder Machine
Brand Name: SFC
Model Number: HFM-300
Certification: ISO9001/CE/SGS
Place of Origin: China
MOQ: 1 Set
Price: 85000-90000 USD per Set
Payment Terms: L/C,T/T
Supply Ability: 10 Sets per Month
Delivery Time: 30 days
Packaging Details: Wooden Case
Diameter of forming rubber tube: 25~330, 100~560, 450~1220
Length of forming rubber tube: 10,20,40, 60,90
Speed of main shaft: 5~200
Winding pitch: 4~1200
Diameter of rubber cloth: 300~900
Width of rubber cloth: 60~1100
Diameter of steel wire: 1.6,2.0, 2.6 ,16
Diameter of rope: 5, 8,12 ,30
Remote control distance: 100
Center height of main shaft: 980
Contact Now
Company Info.
Qingdao Shun Cheong Rubber machinery Manufacturing Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Factory Direct Supply Rubber Profiles Extrusion Line with Cold Feed Design Multi-row Pins and Low Extrusion Temperature

Factory Direct Supply Rubber Profiles Extrusion Line
Ideal for continuous extrusion of rubber compounds. With pin barrel mixing system, it enables cold feeding without pre-heating, delivers excellent plastication, uniform mixing, low temperature extrusion and high output.
Key Features
  • Multi-row pins enhance shearing & mixing, eliminate dead zones
  • Cold feed design saves labor & energy, no warm-up needed
  • Low extrusion temperature prevents scorch, ensures high density
  • Stable pressure & consistent dimension for quality products
  • Wide application: tire tread, rubber hose, seals, conveyor belt, wire & cable
Applications: Tire manufacturing, rubber products, hose & belt, sealing parts, wire and cable industry.
Product Parameters
ItemXJD-90XJD-120XJD-150XJD-200XJD-250
Screw Diameter (mm)90120150200250
L/D Ratio1212; 1414; 1612; 14; 1612; 14; 16
Max. Screw Rotational Speed (r/min)6050433526; 30
Feeding Port (mm)120×90164×130220×130260×190310×220
Number of Pin Rows88; 101010; 1210; 12
Pins per Row6681012
Motor Power (KW)75-9090-110200-220315-355400-500
Zone of Hot Water Circulation44444
Total Heating Power of Hot Water Circulation (KW)48484848-6448-64
Capacity (kg/h) (Temperature Control System)250-360600-8001000-15001600-26003000-3500
Overall Dimensions (mm)2800 × 1400 × 15003450 × 1320 × 15004000 × 1810 × 16205500 × 2100 × 18506000 × 2400 × 1850
About Weight (T)~4.5~6~7.25~12~17
Product Introduction
  • This equipment uses new technology, which adopts a mobile car-like structure and can be used for forming a variety of rubber tubes
  • The operator and raw material reciprocate along the tube core longitudinally with the mobile car, winding tape, film, steel wire, etc. on the tube blank according to set pitch to complete the forming process
  • PLC man-machine interface automatic operation provides high degree of automation, saving labor costs
  • Customizable equipment according to specific requirements
Product Photos

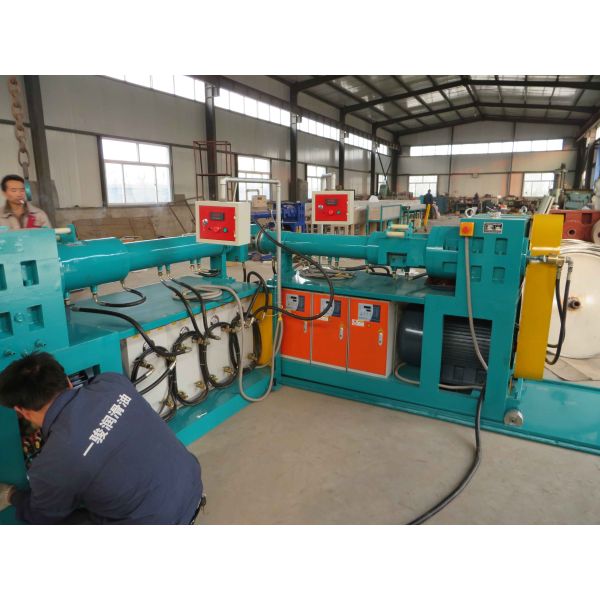

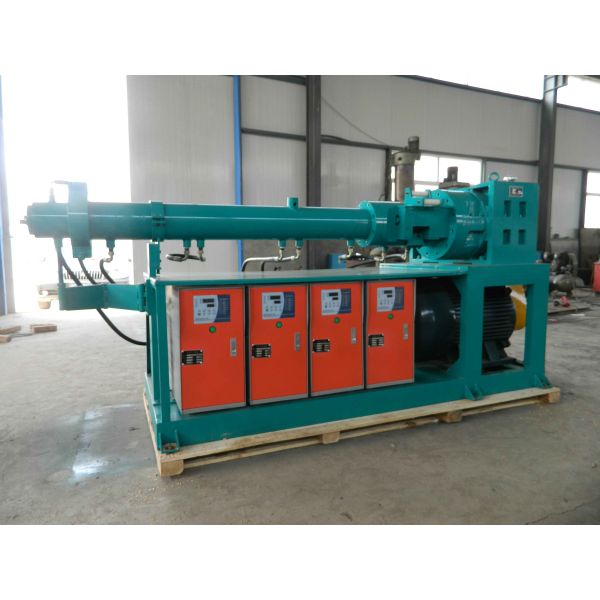

Rubber extrusion line overview Extrusion line side view Machine control panel Extrusion mechanism detail Production line operation Machine components Extrusion output Factory installation Quality control process Technical specifications Machine maintenance Final product examples Technical diagram 1 Technical diagram 2
About Us
Company facility 1 Company facility 2 Company facility 3 Company facility 4
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, Huangdao New District, Qingdao City. We are a specializing in the production of rubber machinery of high and new technology backbone enterprises. The company passed the ISO9001:2015 quality management system certification, the European Union CE certification and Switzerland SGS certification.
Industry Coverage: Tire manufacturing, rubber conveyor belt production, all kinds of rubber products, tires refurbished manufacturing, waste tire recycling.
Main Equipment: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire crusher, Rubber Extruder, Rubber Strainer, etc.
Global Reach: Products are exported to Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, Kazakhstan and more than 50 countries and regions, winning praise and long-term cooperation from domestic and foreign customers.
Product quality and after-sales service are the key priorities and management focus of Qingdao Shun Cheong Machinery Co., Ltd.
Our Service
  • Our engineers can design target machines for customers and send drawings for confirmation
  • During production, we provide progress photos for customer tracking
  • Complete documentation including packing list, commercial invoice, and bill of lading provided after delivery
  • Free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing
FAQ
1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of installation. Small machine usually takes within 2-3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency. We have had many successful cooperations with world famous rubber production manufacturers.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The nearest airport is Qingdao Jiaodong Airport. We will arrange pickup from the airport.
