| Categories | RJ45+Single/Dual USB |
|---|---|
| Brand Name: | DGKYD |
| Model Number: | DGKYD611Q008AF5WD009 |
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 |
| Place of Origin: | DongGuan of China |
| MOQ: | 1 piece |
| Price: | Please contact us to get the latest price. |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability: | 100K pcs/day |
| Delivery Time: | 10 days |
| Packaging Details: | Tray in Carton |
| Product Name: | RJ45 with Transformer |
| Type: | RJ45 USB Combo |
| Housing: | Phenolic, PBT Black (UL94V-0) |
| PCB Mount Style: | DIP |
| LED Color: | Green-Orange/Yellow |
| Shielding: | Shielding |
| Orientation: | 90° Angle (Right) |
| Applications Speed: | 10/100/1000 Base-T, AutoMDIX |
| Scope of application: | Electronic equipment |
| Number of Ports: | 1 Port |
| Operating temperature: | - 40℃～+85℃ |
| Number of pins: | 12 |
| Company Info. |
| Keyouda Electronic Technology Co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

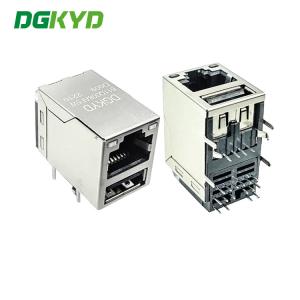

RJ45USB Gigabit integrated filter connector Ethernet transformer withs light strip isolation shrapnel USB
Electrical Specifications:
．Insertion Loss:1-100MHZ -1.0dBmax
．Rturn Loss:1-30MHZ -16.0dBmin
30-60MHZ -14.0dBmin
60-80MHZ -10.0dBmin
．Cross Talk:1-30MHZ -40.0dBmin
30-60MHZ -35.0dBmin
60-80MHZ -30.0dBmin
．CMR:1-100MHZ -35dBmin
．Hi-pot:1500v AC 6S 1mA
．Turn Ratio:1CT:1CT±3%
．OCL:350uH @100KHZ 100Mv 8mA DC
Parameters
| Part Number | DGKYD611Q008AF5WD009 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-up |
| Filter | With Filter | LED Option | With LED |
| LED Color | Yes Green/Orange-Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 12 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Drawings
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7
working days after payment. For customized products and products
that are out of stock, the delivery time should be confirmed
according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products
free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully
capable of customizing products for you.
|
