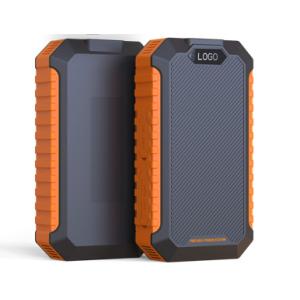

6.5h Outdoor Rechargeable Energy System AC220V Portable CPET-MP 100W

Portable Outdoor Emergency Power Supply

DC output

Long press the DC button for 1 second to turn on the DC output function. The blue backlight of the button lights up. The corresponding area of the display screen displays the "DC CIG" icon, indicating the output of cigarette lighter port. Long press for 1 second to turn off DC output function, and long press for 3 seconds to turn off all output functions.

Car charging

When the vehicle is started, connecting wire is used to connect the vehicle lighter and the input port. The display lights up and flashes "CHG ->" to indicate charging, and the input shows charging power, indicating that the ring color block of electric quantity flashes, input voltage between 12V to15V.

Specifications

Rated power	100W
Rated capacity	97.68wh
Standard capacity	3.6V26400mAh
Overload protection	130±20W
AC output	AC220V±10%/60HZ
Output waveform	Correction Wave
USB output	QC3.0/18W
Type-C output	PD18W
DC 5521 output	12V/8A
Charging input Voltage	PD18W
Working temperature	-10-40℃
Weight(Net weight)	≈0.9kg
Weight(with accessories)	≈1.2kg
Dimension	220*120*49mm

The product cannot be discharged

① It cannot be output and the display screen does not light up when any key is pressed. Please contact the after-sales service.

② The backlight of the key and the display are on when the key was pressed, but there is not output in the corresponding area. Check whether the equipment connection is normal. If the connection is normal, check whether the alarm code is prompted to output the overload protection. Restart and try again after removing the responsibility.

③ Check whether the rated power of the electrical equipment is greater than the maximum limited power, and do not use if it exceeds the limited value.

After-sales service

During the use of the product, the normal operation according to the user's manual can not eliminate the fault. Please contact the dealer in time and give clear feedback to the after-sales personnel: product model, purchase date, contact number and fault phenomenon.

① Product warranty period 1 year

The shelf life is calculated from the date of purchase by consumers. In order to determine the purchase date, consumers are requested to keep the purchase related bills and online purchase records.

② During the warranty period, the company shall undertake the obligation of free maintenance and parts replacement for defects caused by product process or materials and damage caused by non-human factors.

③ The following are not covered by the warranty.

• Dismantle and repair without permission of non-staff

• Product performance failure due to human factors

• Damage caused by natural disasters, lightning, accidents and other irresistible factors

• Appearance damage after use is not covered by warranty

Shenzhen CONSNANT Technology Co., Ltd. （simple name: CONSNANT） is a professional manufacturer engaged in research, development and production of UPS (Uninterruptible Power Supply) including the Modular UPS, Outdoor & Indoor UPS,Industrial special UPS, Low Frequency & High Frequency Online UPS and Solar Power System both for home appliance and telecom equipments.
