| Categories | Electrical Energy Measuring Instrument |
|---|---|
| Brand Name: | Toky |
| Model Number: | DW9T series |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1set |
| Payment Terms: | T/T |
| Delivery Time: | 15~35days |
| Packaging Details: | Carton |
| Usage: | Industrial |
| Power supply voltage: | 100～240Vac，50/60Hz |
| Power consumption: | ≤5W |
| Accuracy: | 0.5% |
| Working environment: | -10～50℃ 5～90%RH |
| Analog output: | 4～20mA |
| Environmental standard: | IEC 60068-2 |
| Safety standard: | IEC 61010-1，UL61010-1 |
| Communication: | RS485, |
| Baud rate: | 4.8kbps、9.6kbps、19.2kbps、38.3kbps、115.2kbps |
| Company Info. |
| Light Country(Changshu) Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

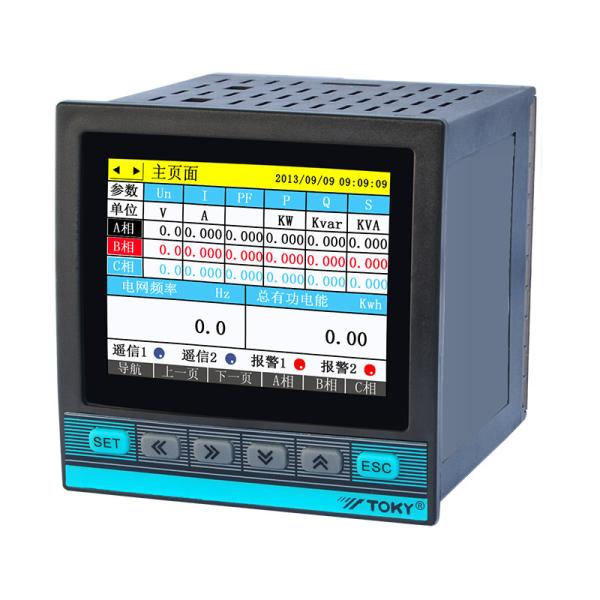

DW9T Series high accuracy 3phase multifunction power recorder, 3.5
inch TFT LCD display, RS485, Modbus-RTU protocol
1. Features and advantages:
a). Optional 3 phase voltage/current total harmonic and subharmonic
measurement.
b). Optional 8 time frame, 4 kinds statistic rate.
c). Can measure 28 electrical parameters, including voltage/current/active
power/reactive power/frequency/power factor, and etc.
d). Measuring frequency range:45～400Hz. High accuracy.
e). RS485 communication(Max 2loop),Modbus RTU and DLT645 procotol.
f). Max 4 loop DI and DO, isolated input/output with remote and
telecommand functions.
g). Max optional 3 loop 4 ～ 20mA analog output.
2. Model specification:
3. Technical parameter:
| Input signal | Input voltage | 3*100V/57.7V 3*450V/220V Power consumption per phase<1VA |
| Voltage impedance | ≥300KΩ | |
| Input current | 3*5A(1A can be ordered) Power consumption per phase<0.4VA | |
| Current impedance | ＜20mΩ | |
| Rated frequency | 50Hz,60Hz | |
| Accuracy | Active power:level 0.5S; Reactive power:level 2; Voltage & current:0.2%FS | |
| Measurement range | Current:0.001In～1.2In Voltage:0.01～1.1Un | |
| Electrical parameter | Relay capacity | AC 250V 5A DC 24V 5A(Resistive load) |
| Analog output | DC 4～20mA with load＜400Ω | |
| Display device | Industrail TFT LCD display | |
| Clock accuracy | 0.5S/d | |
| Communiction | Communication port | RS485 port Modbus RTU protocol or DLT645 protocol |
| Baud rate | 4.8kbps,9.6kbps,19.2kbps,38.3kbps,115.2kbps | |
| EMC | ESD | level 3,Contact discharge±6000V, air discharge±8000V |
| Pulse group | level 4 ±4000Vp-p | |
| Frequency drop | level 3 | |
| Lightning surge | level 3,line to ground:±4000V;line to line ±2000V | |
| Environment | Working environment | -10～50℃ 5～90%RH(no condensation) |
| Storage environment | -40～65℃ | |
| Shell specification | Vibration | 10～57Hz(XYZ direction 2G/30min) |
| Material | VO level flame retardant PC+ABS;mirror:PC | |
| Protection level | IP65(Front panel) | |
| Power | Power voltage | AC/DC 100～240V 50/60Hz |
| Total consumption | ＜5W | |
| Safe | Dielectric strength | 2000VAC 50Hz |
| Insolation strength | 100MΩ DC 500V | |
| Total weight | About 0.6kg | |
4. Appearance and installation dimensions:
5. Connections:
6. Contact:
Sales: bassy shi
Cell phone: +86 13773069136
Email: bassy.shi@youjiazhineng.com
|
