| Categories | Brushed DC Motor |
|---|---|
| Brand Name: | TYHE |
| Model Number: | RS395 |
| Certification: | CE/ROHS/ISO9001 |
| Place of Origin: | China |
| MOQ: | 500pcs |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Delivery Time: | 15 working days after payment |
| Packaging Details: | Foam wrapped, carton packed |
| Size: | 27.7mm*47mm |
| Voltage: | 6v 12v 24v or customize |
| Speed: | 5000rpm or Customized |
| Torque: | 20mN.m |
| Commutation: | brushed |
| Type: | Brushed dc motor, micro motor |
| Keywords: | RS395 30rpm High Rpm 30kg Torque 7.2v 12v 24v Brushed Micro 6w 7w Gear Motor |
| Company Info. |
| Wenzhou Tyhe Motor Co., Ltd. |
| View Contact Details |
| Product List |
Products Description

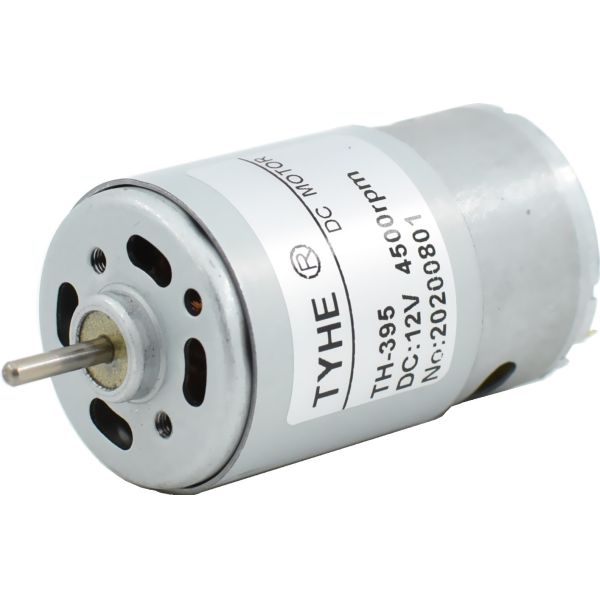

RS395 30rpm High Rpm 30kg Torque 7.2v 12v 24v Brushed Micro 6w 7w Gear Motor
Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| RS395 | 12 | 4500 | 100 | 3600 | 0.29 | 5.90 | 2.22 | 63.55 | 17.70 | 1.70 | |||||||||
| RS395 | 12 | 7500 | 160 | 6000 | 0.62 | 7.30 | 4.59 | 62.15 | 21.90 | 4.50 | |||||||||
| RS395 | 24 | 5000 | 50 | 4000 | 0.17 | 6.30 | 2.64 | 64.68 | 18.90 | 1.14 | |||||||||
| RS395 | 24 | 5300 | 60 | 4240 | 0.20 | 6.70 | 2.97 | 62.49 | 20.10 | 1.30 | |||||||||
| RS395 | 24 | 7500 | 75 | 6000 | 0.27 | 6.72 | 4.22 | 64.95 | 20.16 | 1.90 | |||||||||
2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
|
