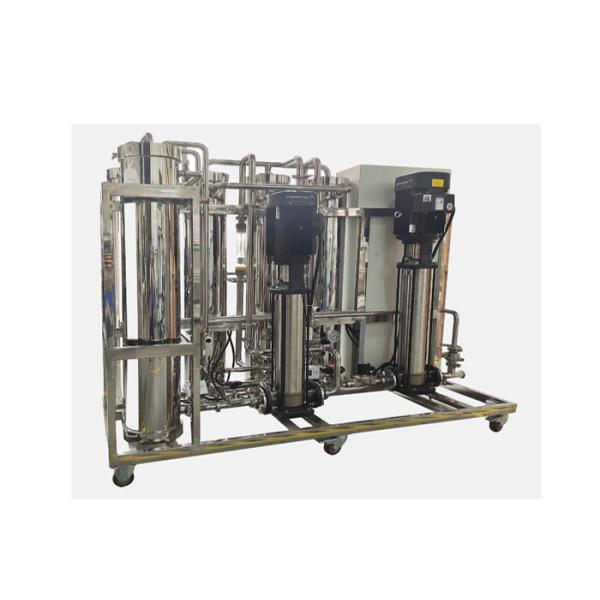

SS304 Stainless Steel Single Pass RO System 1500L/H

RO water purifier is the production of high quality ultrapure water for beverage plant or cosmetic plant or pharmaceutical products, blood analysis, etc., including sand filter, carbon filter, softener, micron filter and RO system.

1. Raw water pump -- provides pressure for sand/carbon filters
2. sand filter - remove turbidity, suspended matter, organic matter, colloid, etc
3. Carbon filter -- remove color, free chloride, organic matter, harmful substances, etc
4. Softener - hard water softeners by removing calcium and magnesium contained in it.
5. Micron filter -- prevent any large particles, some bacteria and viruses from entering RO membrane, accuracy of 5um, used to block any large particles, such as large iron, dust, suspended matter, impurities.
6. High pressure pump #1-- Provides high pressure to RO film, at least 2.0 MPA
7. level one reverse osmosis system - reverse osmosis system is the core of water plant. The RO system is capable of removing more than 99% of ions, bacteria, particles and 98% of organic matter and silica, and 85% of B. Simple operation and long service life.
8. High pressure pump #2-- Provides high pressure to RO film, at least 2.0 MPA
9. secondary reverse osmosis system - reverse osmosis system is the core of water plant. The RO system is capable of removing more than 99% of ions, bacteria, particles and 98% of organic matter and silica, and 85% of B. Simple operation and long service life.
