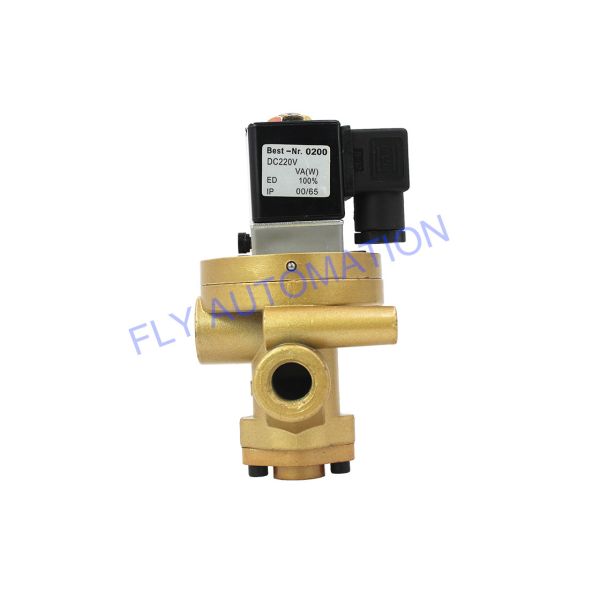

Pneumatic Solenoid Valve K23JD-10W 3/8" Yellow Old Cut-off Valve
3/2 way
| Characteristics | | | | | | | |
| Model | K23JD-08 | K23JD-10 | K23JD-15 | K23JD-20 | K23JD-25 | K23JD-32 | K23JD-40 |
| Port Size mm | 8 | 10 | 15 | 20 | 25 | 32 | 40 |
| S mm' | 20 | 40 | 60 | 110 | 190 | 300 | 400 |
| Leakage Nml/min | under 10 | under 20 | under 30 |
| Change Time ms | under 8 | under 10 | under 15 |
| Switch Frequency Hz | more than 8 | more than 4 | more than 3 |
| Working Pressure Mpa | 1 |
| Voltage V | AC:220, 110, 36; DC: 36, 24, 12 (+10%~-15%) |
| Working Temp °c | -10~55 |
| Life | more than 1.5 million times | 0.5 |
| Working Media | The air clean and mixture of oil |
| Media Temp °c | -5~50 |
Model K23JD-08 K23JD-10 K23JD-15 K23JD-20 K23JD-25 K23JD-32
K23JD-40
Port Size mm 8 10 15 20 25 32 40
S mm' 20 40 60 110 190 300 400
Leakage Nml/min under 10 under 20 under 30
Change Time ms under 8 under 10 under 15
Switch Frequency Hz more than 8 more than 4 more than 3
Working Pressure Mpa 1
Voltage V AC:220, 110, 36; DC: 36, 24, 12 (+10%~-15%)
Working Temp °c
-10~55
Life more than 1.5 million times 0.5
Working Media The air clean and mixture of oil
Media Temp °c
-5~50
Describtion
1.Structure in sliding column mode: good tightness and sensitive
reaction.
2.Internal hole adopts special processing technology which has
little attrition friction low start pressure and long service life.
3. No need to add oilfor lubrication.
4.Affiliated manual devices are equipped to facilitate installation
and debugging.
5.Several standard voltage grades are optional.
Model B C D E F G H M MG MF N
K23JD-8 96 78 73 17 16.5 9 45 39 G1/4"(M12x1.5) G1/4"(M16x1.5) 170
K23JD-10 G3/8"(M16x1.5) G1/2"(M20x1.5)
K23JD-15 G1/2"(M20x1.5) G1/2"(M20x1.5)
K23JD-20 113 89 82 24 21 9 52 38 G3/4"(M27x2) G1"(M33x2) 190
K23JD-25 G1"(M3x2) G1"(M33x2)
K23JD-32 165 121 118 37 37.5 13 75 46 G1 1/4"(M42x2) G1 1/2"(M48x2)
260
K23JD-40 G1 1/2"(M48x2) G1 1/2"(M48x2)
After-sales clause:
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some
unexpected problems
happen, we hope to solve the problems with buyer through friendly
in the following ways:
1, If it is quality problem, buyer can submit argue within 15days
after receiving the goods,
buyer must provide photos or video and other evidence to seller for
identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one
year (not included those
damages coursed by shipping or Man-made damaged ). A 15% restocking
fee is
assessed for any products returned in "used" condition. And then we
will send a new
product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD)
has quality problems, we
will resend a new product in buyer next order; if buyer don't plan
to make a new order in
the near term, buyer can pay the resend shipping cost and ask to
resend a new product. If
there is an issue with the products, please contact us– we will
solve it as soon as we get
your email.
In Addition
If you have received a product which had a problem,please contact
us the first time.
