| Categories | Veterinary Monitoring Equipment |
|---|---|
| Brand Name: | RAINBOW |
| Model Number: | PM-9000GTA animal version |
| Certification: | ISO13485, FSC |
| Place of Origin: | HUNAN, CHINA |
| MOQ: | 1 unit |
| Price: | US $255-388/unit |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000units/year |
| Delivery Time: | Within 3 days |
| Packaging Details: | Packing Packing terms: Anti-collision film+ Carton box Carton box dimension: 39*30*35cm Gross weight: 5kg |

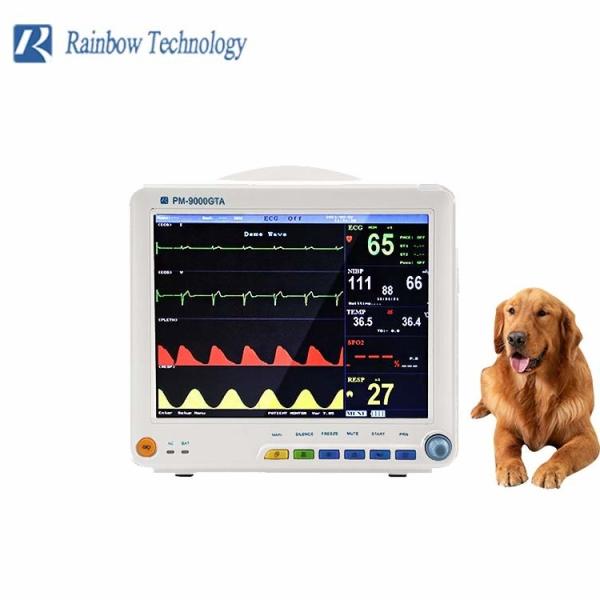

| Product name: | Veterinary monitor |
| Display size: | 12.1 inches TFT |
| Warranty: | 1 Year |
| After-sale Service: | Online technical support |
| Transport Package: | Anti-Collision Film/Carton Box |
| Application: | For veterinary use |
| Function: | ECG,HR/PR,SPO2,NIBP,RESP, TEMP |
| Inventory: | YES |
| OEM: | Available |
| Company Info. |
| Hunan Province Rainbow Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| 6 parameters | ECG,HR/PR,SPO2,NIBP,RESP, TEMP |
| Size | 12.1 inch |
| Weight | 5kg(with lithium battery) |
| Voltage | 220v |
| Power | 40w |
| Leads | 3-5 leads |
| Suitable places | Bedside care ward, ICU, CCU, operating theaters, emergency centers, vet pet clinic and the like. |
| Optional | ETCO2 module; Build-in thermal printer; lithium battery; mobile stand/ wall mount |
| SFDA classification | Class II |
| Working system | Continuous running equipment |
Packing
Packing terms: Anti-collision film+ Carton box
Carton box dimension: 39*30*35cm
Gross weight: 5KG
Shipping:
Air shipping or Express courier is recommended if the order quantity was less than 20 units. It usually takes around 7 days to reach the destination. By ocean shipping, it normally takes 20-40 days depending on the destination port.
Technical parameters
| ECG | lead mode;I,II,III,AVR,AVL,AVF,V1-6 Gain: ×0.25, × 0. 5, and × 1, × 2 Frequency: 0.5 Hz - 100 Hz Common-mode signal inhibition: More than 70 dB Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls. HR: ± 5 BPM Precision calibration signal: 1mv(peak, ± 3% accuracy) ST Detection: measurement range (-2.0mV----+2.0mV) Using Standard: meet the ANSI / AMI EC13 -2002 standard Response time: 1s Alarm: Sound and Light Preset heart rate range: (Alarm over preset numerical) Ceiling: 1-255 bpm adjustable Threshold: 0-254 bpm adjustable | NIBP | Technology: Oscillography Mode: manual / automatic Measurement units: mmHg / kPa Scope: Pressure Cuffs 0-250 mmHg Inflatable cuffs: 180 mmHg (120mmHg for children, 70mmHg for newborn) Inflatable cuffs follow: original SBP: + 30 mmHg Measuring range: SYS: 60-250 mmHg DIA: 40-220 mmHg MEAN: 45-235 mmHg Response time: 1s Alarm: Sound and Light Preset range: report (Numerical exceed preset alarm) SYS: maximum: 1-255 mmHg adjustable Threshold: 0-254 mmHg adjustable DIA: ceiling: 1 -255 mmHg adjustable Minimum standards: 0-254mmHg adjustable |
| SPO2 | Range: 0-100% Accuracy: 1% Resolution: 1% Pulse frequency: 20-250 times / min Response time: 1s Alarm: Sound and Light Preset range: (report Alarm over preset numerical) Ceiling: 1% - 100% adjustable Threshold: 0% - 99% adjustable | TEMP | Technology: thermostat temperature probe Measuring range: 20 ° C-45 ° C Temperature resolution: 0.1% Accuracy: ± 0.1 ° C Response Time: 1s Alarm: Sound and Light Preset range: report (numerical preset alarm over) Maximum: 20.1 ° C-45.5 ° C adjustable Threshold: 20 ° C-45.4 ° C Adjustable |
| RESP | Breathing frequency range: 0-60 bum Accuracy: ± 1rpm Response time: 1s Gains options: × 1, × 2, × 0.5, and × 0.25 four trenches Alarm: Sound and Light Alarm range: (numerical preset alarm over) Ceiling: 10-100 bpm adjustable Threshold: 0 -99 bpm adjustable | Printer(Optional) | Specification: Dual channel thermal array data recorder Print mode: Real time or event triggered record waveform and text Accuracy: horizontal: 4oodpi vertical: 800dpi Annotation: Date/ time(24 hours) Optional wall bracket, mobile stand, visits backpack. |
| System | Screen:12.1 inches TFT screen of LCD Battery: sealed maintenance-free lithium battery Safety standard: lec601-1(GB9706.1) | ||
1. who are we?
We are based in Hunan, China, start from 1997,sell to Domestic
Market(50.00%),Southeast Asia(15.00%),Africa(10.00%),Central
America(10.00%),Mid East(8.00%),South Asia(7.00%). There are total
about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Multi parameter Patient Monitor,ECG Machine,Infusion Pump,Syringe
Pump,Nutritional Pump
4. why should you buy from us not from other suppliers?
Hunan Rainbow Technology Co,Ltd is a professional manufacturer and
wholesaler in monitor with 19-year experience. In order to meets
the marketing demand, our company cooperate with the America RMS
Company to release a serials of PM-9000 parameters monitor.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
|
