| Categories | Lacing Anchors |
|---|---|
| Brand Name: | XIANGYI |
| Model Number: | lacing anchors |
| Certification: | ISO9001-2015 |
| Place of Origin: | China |
| MOQ: | 10000 pcs lacing anchors |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 450000 pcs per 30 work days |
| Delivery Time: | 15 work days |
| Packaging Details: | carton + pallet for metal lacing anchors |
| Name: | Insulation Lacing Anchors With Self-locking Washers |
| Material: | anneaded Stainless Steel Wire |
| Feature: | easy Bending, Easy Installation |
| Application: | Insulation covers, insulation blankets |
| Head Type: | round or rectangle |
| Head Size: | 22mm, 30mm, 20mmx25mm |
| Pin Diameter: | 14ga, 12ga |
| Pin Length: | 4-1/2" or 2-1/2” |

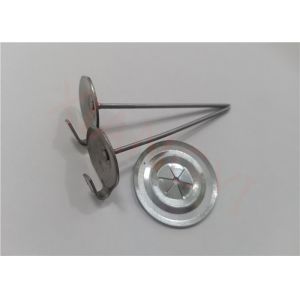

Stainless Steel Lacing Anchors For Fastening Lagging To Exhaust Systems
Common Size Of The Stainless Steel Lacing Anchor System:
| Anchor type | Head size | Hook size | Pin diameter | Pin length | Material |
| min round head | 22 mm | 5x11mm | 2mm, 2.2mm, 2.7mm | 38mm - 203mm | SS, MS |
| round head | 30 mm | 5x15mm | 2mm, 2.2mm, 2.7mm | 100mm - 300mm | SS, MS |
| oblong head | 20 x 25mm | 5x11mm | 2mm, 2.2mm, 2.7mm | 38mm - 203mm | SS, MS |
* Stainless Steel is a popular material while this type lacing anchors is also made in mild steel
* Stamped "no ab" to denote 'no asbestos'
* Used as the means of fastening lagging to exhaust systems (tie wire as the lacing material).
* Lacing anchors can be used to add additional support to existing lagging, or used with other
raw insulation material
| Lacing rings | material: stainless steel 304 / 316 |
| type: weld type or unweld type all avalible | |
| size: 3mm x 30mm | |
| Self locking washers | material: SS, MS. G.S |
| Types: round type and square type | |
| size in standard: 25mm, 30mm, 38mm | |
| Dome cap washers | material: SS, MS, G.S |
| Standard size: 22mm, 27mm, 30mm, 40mm |
Product Display:
 | Item: stainless steel lacing anchors
| |||||||||||||||
 | Item: self locking washers Size: 25mm 30mm 38mm For: 12G 14G pins | |||||||||||||||
 | Item: D rings Material: stainless steel Size: 20x30mm Wire Diameter: 3mm |
* if you want to know the technical data and specification tape of lacing anchor hook washers & accessories,
contact with me by e-mail, we will send them to you at once.
* if your order is small, please don't worry, we have common size of cacing anchor & accessories in our stock.
* if you want to confirm the details of the lacing anchor & accessories, we will supply smaples or drawing of
lacing anchor & accessories
* if your worry about the delivery time, please contact with me, we will supply door to door service.
* if you want to reduce the cost, contact with me we will supply CO, FAT, FORM A, FORM E and other doucments.
* if you worry about the quality, please contact with me. our factory meet ISO9001-2008 Quality management
certification system, The quality of raw materials is guaranteed and the quality of products meets international
standards.
How to Install the insulation lacing hooks
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the
insulation
4: bend over or clip off the pin
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
