High Temperature Flush Diaphragm Pressure Transmitter For Sanitary Application

High Temperature Flush Diaphragm Pressure Transmitter For Sanitary Application

High Temperature Flush Diaphragm Pressure Transmitter For Sanitary Application
High Temperature Flush Diaphragm Pressure Transmitter For Sanitary Application
Categories High Temperature Pressure Transmitter
Brand Name: WNK
Model Number: WNK805
Place of Origin: Anhui, China
MOQ: 1
Price: $45.00 - $65.00/Pieces
Supply Ability: 2000 Piece/Pieces per Month hydraulic pressure regulator
Packaging Details: Each piece into individual carton with foam protection
Or as per client's request
Warranty: 1 YEAR
Customized support: OEM, ODM
Accuracy: 0.5% FS, 0.5% FS
Output signal: 4~20mA, 1-5V
Pressure range: -100Kpa ~ 60 MPa
Operating temperature: -20~85 ℃
Power supply: 10.5-55V DC, 10.5-30V DC
Housing material: 304/316SS
Measured media: liquid, gas, steam
Ex-proof: ExiaII CT4/CT6, ExidIICT6
Type: Diffused Silicon Pressure Transmitter
Product name: 2-Wire Signal Output Hydraulic Pressure Transmitter with LCD Display
Port: Shanghai/Ningbo
Contact Now
Company Info.
Hefei WNK Smart Technology Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

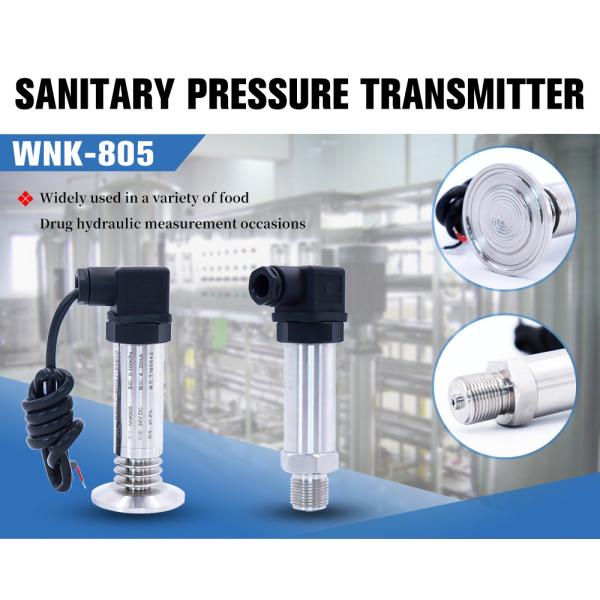

High Temperature Flush Diaphragm Pressure Transmitter For Sanitary Application

WNK High Temperature Flush Diaphragm Pressure Transmitter For Sanitary Application
wnk Flush Diaphragm Pressure Transmitter
Specifications
The Series WNK805 Sanitary Pressure Transmitter is designed to meet the applications in food, dairy, beverage and pharmaceutical processing, liquid level control, and sanitary pipelines. The unit is fully sealed to withstand high pressure wash-down in Clean-in-Place and Sterilize-in-Place installations.

Tri-clamps are one of the most common types of pipe connections in the food, beverage, biotech, and pharmaceutical industries. This type of connection consists of a gasket compressed between two tri-clamp ferrules or flanges which are mechanically compressed in place with a clamp. Tri-clamp fittings are available in a variety of sizes, can be constructed from either steel or plastic, and can be either permanent or temporary. The clamp itself also comes in a variety of designs for ease of disassembly and cleaning.

It is therefore essential to select the right type of tri-clamp fitting to ensure the connection operates effectively in a given application. Choosing the right size and type of fitting can help minimize or eliminate contamination, bacterial growth, leaks, and deterioration of the connection material.
High Temperature Sanitary Clamp Flush Type Pressure Transmitter
Applicable media
Liquid, Gas, Steam
Pressure measurment
Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range
0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa
Output signals
Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V, 0-10V DC
Accuracy
0.25%, 0.5%, 1.0%FS
Stability
±0.25% FS/year
Zero drift
50% of full range span.
Max overload
200% of sensor range
Display
LED (Optional)
Housing material
304SS, 316L
Mechanical connection
Clamp,Flush and Flange
Power supply
Non-explosion: 10.5~45V DC
EEX ia:10.5~30 V DC
Ambient temperature
-40~85℃
Process temperature
-40~85℃

Features
- Standard ranges from vacuum to 60Mpa
- Accuracy up to ±0.25%
- 4-20 mA 2-wire output signal, others available
- Highly resistant to pressure spikes and vibration
- Stainless steel case and wetted parts
- Full range of process and electrical connections
- Assemble to diaphragm seals for special applications
- Suitable for gas, liquid, steam pressure measurement
- Intelligent digital circuit with precise temperature characteristic compensation
- Tantalum sensor contact for option for pressure measurement with corrosive media

Product Show


FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
