Belparts Excavator Hydraulic Pump For 325D 329 328DLCR Escavadeira Main Pumps 272-6959

Categories Excavator Hydraulic Pump
Brand Name: Belparts
Model Number: 325D 329 328DLCR
Certifiion: OEM
Place of Origin: Huangpu Port
MOQ: 5 piece
Price: Negotiable price
Payment Terms: T/T, Paypal and Trade Assurance
Supply Ability: 500pieces
Delivery Time: 1-7days
Packaging Details: Wooden packing
Condition: New
Warranty: 12month
Part name: Excavator Hydraulic Pump
Part number: 272-6959
Availability: In stock
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Belparts Excavator Hydraulic Pump For 325D 329 328DLCR Escavadeira Main Pumps 272-6959

Belparts Excavator Hydraulic Pump for 325D 329 328DLCR Escavadeira main pumps 272-6959

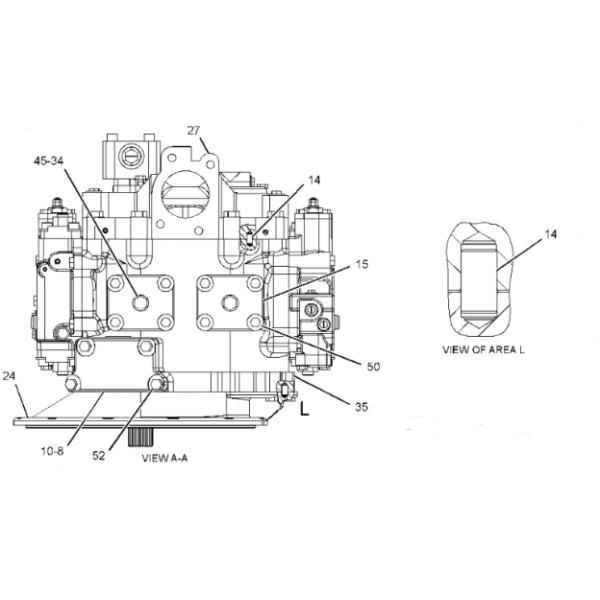

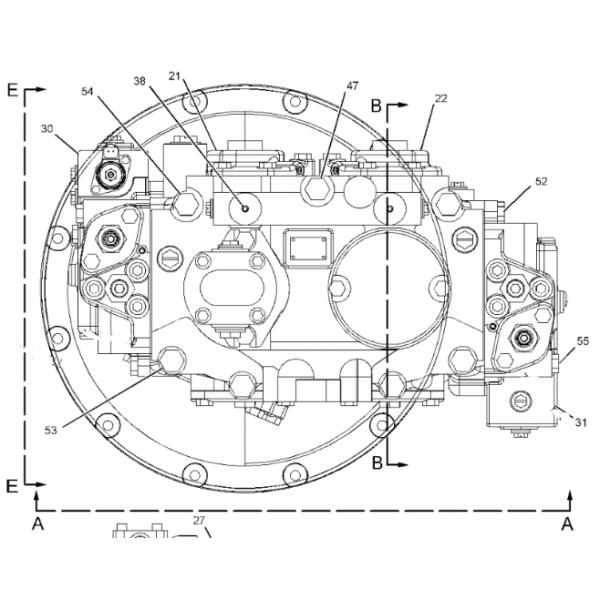

Parts scheme

List of spare parts

#Part NoPart NameQty.Remark
14I1022ORIFICE2
27Y4215SPACER2
30963983RING-RETAINING1
40964389SPRING18
51262016PUMP GROUP-GEAR (PILOT)1
5A9T0835RING-RETAINING1
622546111
72344494GASKET1
82344493GASKET1
91948325SET-BEARING2
101297863COVER1
111297921RING-RETAINING2
122344498SEAL-LIP TYPE1
131297927BEARING2
141297979DOWEL4
151505782COVER2
162254541SHAFT-DRIVE1
171733427GUIDE-BALL2
181297853PLATE-CREEP2
192560081BARREL AS-DRIVE1
202560083BARREL AS-PUMP1
211772470COVER1
221772471COVER1
231778740SEAL-O-RING1
241799763FLANGE1
251884210PISTON AS2
261920573PIN-DOWEL4
272003333HEAD-PUMP1
282003334COVER1
292254542SHAFT-DRIVEN1
302560074ACTUATOR GROUP-PUMP -DRIVE1
312560077ACTUATOR GROUP-PUMP -DRIVEN1
322426801SWASHPLATE AS2
(EACH INCLUDES)
32A0941875PIN, ROLLER1
32B1733428BEARING-SLEEVE1
32C2426803PIN-DOWEL2
332426804BEARING4
349S4185PLUG--TO SEAL HYDRAULIC PUMP TO SUMP OF LIMIT SYSTEM2
352478782BODY1
362478920ORIFICE2
370941875PIN, ROLLER6
380941882PLUG, TAPERED16
390950946RING (RETAINING)2
408T4196CAPSCREW (HEX HD) (M10 X1.5 X 35, GR10.9, Z)2
410963944SEAL-O-RING1
421899763SEAL (13.6mm OD)8
431904896PLUG2
441931736SEAL (85.6mm OD)4
453K0360SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN2
467M8485SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R14292
477X2557BOLT (M16X2.0X140MM)1
488J4645PLUG (FRONT 5 STEM MAIN CONTROL VALVE)2
498T3338SEAL-O-RING (ID=84.40mm)2
508T4136CAPSCREW (HEX HD) (M10 X 1.50 X 25L GR 10.9)18
518T4137BOLT (M10X1.50X20MM)2
528T4139CAPSCREW (HEX HD) (M12 X 1.75 X 30L GR 10.9)10
538T4140BOLT-PLT (M16 X 2.0 X 60)4
548T4175BOLT (M16X2X90-MM)2
558T4176BOLT-PLT (M12 X 1.75 X 90)2
568T4192CAPSCREW (HEX HD) (M12 X 1.75 X 25, GR10.9, Z)10
AVAILABLE REPAIR KIT(S):
2502503KIT-SEAL (PILOT GEAR PUMP)1
(INCLUDES 2 GASKETS, LIP SEAL, SEAL & RETAINING RING)
KIT MARKED J SERVICES PART(S) MARKED J
METRIC PART
SEPARATE ILLUSTRATION

Product description


Appliion HitachiExcavator for
QualityHigh Guarantee
Model325D 329 328DLCR
PackageStandard Packing at Normal
Warranty1 Year
Payment termT/T,, PayPal, Trade Assurance
Delivery2 days after the payment received
Shipmentby sea, by air, by express or as required

FAQ

1 . If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.


2 . What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.


3 . How can I pay the order?
You can finish the payment by T/T,Western Union,Paypal etc.


4 . When will get the items after I place order?
Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .


5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.


6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
