Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine

Categories Pneumatic Rotary Chuck
Brand Name: Lingman
Model Number: G500D-230
Place of Origin: Changzhou, Jiangsu, China
MOQ: 1 set
Price: USD 4800-5200 set
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Delivery Time: 10-15 work days
Packaging Details: Wood carton
Product name: Full Stroke Chuck
Claw stroke: 230mm
Maximum clamping force: 1.7KN
Allowable pressure: 0.3-0.95MPa
Limit speed: 142r/min
Clamping range: 8-227mm
Central height: 313mm
Rotational inertia: 4.20kg.㎡
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

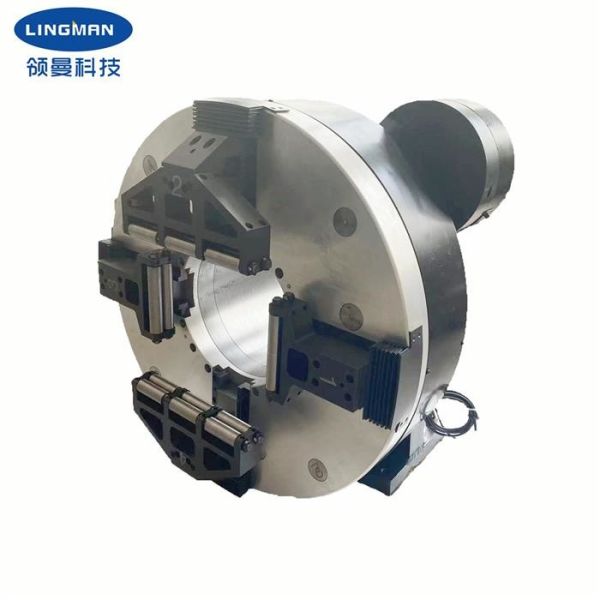

Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine

Factory Direct Chuck 4-Jaw Pneumatic Rotary Laser Chuck for Pipe Cutting Machine

1. Description

The chuck is a four-jaw full-stroke main chuck specially designed for laser pipe cutting equipment. After the product base is fixed, it is only necessary to add a matching motor to connect with the gear, and then connect the compressed air source (0.3-0.9mpa) to clamp the workpiece and drive the workpiece to rotate. The chuck is operated with full stroke, there is no need to adjust the position of the four jaws. Can clamp round tube, square tube and rectangular tube to improve production efficiency. Compared with similar products on the market, the chuck has higher rotation accuracy and repeatability, as well as higher clamping force, and can meet the processing of thin-walled pipe fittings.
The products can be widely used in pipe processing systems such as special laser pipe cutting machines.

2. Performance Parameters


Model number

G500D-230
Claw stroke220mm
Maximum clamping force1.5KN
Alloable pressure0.3-0.9MPa
Limit speed150r/min
Clamping range8-228mm
Central height315mm
Rotational inertia

4.18kg.㎡

Rotating part weight124kg
Whole unit weight245kg

Note: above numbers are standard parameters. We can also design products according to clients' special requirements.


3. Dimensions



SpecificationsABB1CDEFGHIJKORS
G500D-23042031560061522060380368230265250490612-M818X22


4. Advantages


a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available

e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws


5. Our Service


a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.

6. Production Line

Quality Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine wholesale
