| Categories | Voltage & Current Protector |
|---|---|
| Place of Origin: | Zhejiang, China |
| Brand Name: | Customized |

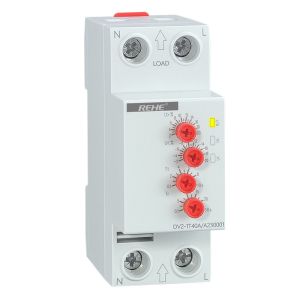

| Model Number: | DV2-1T40A |
| Theory: | Voltage Relay |
| Usage: | PROTECTIVE |
| Size: | Miniature |
| Protect Feature: | Sealed |
| Contact Load: | Low Power |
| Supply terminals: | L1-N |
| Voltage range: | 145-300V AC 50-60Hz |
| Burden: | AC max. 1.2VA/0.5W |
| Upper level (U max): | AC 225V-275V |
| Bottom level (U min): | AC 165V-215V |
| Max. permanent: | AC 300V |
| Peak overload<1ms: | AC 450V |
| Electrical strength: | 4 kV (supply-output) |
| Switching voltage: | 250V AC1 |
| Operational current: | 40A |
| Packaging Details: | 1.Strong Strandard Export Package,Meet The Long-Distance Transportation |
| Port: | Ningbo or Shanghai |
| Supply Ability: | 5000 Piece/Pieces per Week |
| MOQ: | 10 pieces |
| Price: | $11.38/pieces >=10 pieces |
| Company Info. |
| YUEQING RENHE ELECTRIC CO., LTD. |
| View Contact Details |
| Product List |
It serves to control supply voltage for appliances sensitive to supply tolerance, protection of the device against under/over voltage.
♦ DV2-1G is fixed settings, DV2-1T is Adjustable settings over/under voltage relay. For difference settings of over/under voltage.
♦ 3-state indication-LEDs indicating normal state and 2 fault states.
♦ Supply from monitored voltage (monitors level of its own supply).
♦ 2-MODULE, DIN rail mounting.
| Model | Voltage range | Switching voltage | Operational current | Unit | Price |
| DV2-1T40A | 145-300V AC 50-60Hz | 250V AC1 | 40A | 1PC | $11.38 |
|
