IP65 Rain Proof 4G LTE Gps Tracker SOS Alarm For Vehicles

Categories 4G GPS Tracker
Brand Name: iStarVideo
Model Number: iSV-GTY18(4G)
Certification: CE
Place of Origin: China
MOQ: 1pcs
Price: $13.9~$15.9
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs per month
Delivery Time: 3-5 work days
Packaging Details: Giftbox Size: 160*90*75mm
Product Type: 4G Vehicle GPS Tracker
Connection: 4G/3G Sim Card or 2G Sim Card
Location: GPS, BDS, LBS 3Modes
Antenna: Antenna
Map: Google Map
Position Accuracy: <10 Meters
Use: Automotive, Motorcycle
Built-in Battery: 120mAh / 3.7V
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

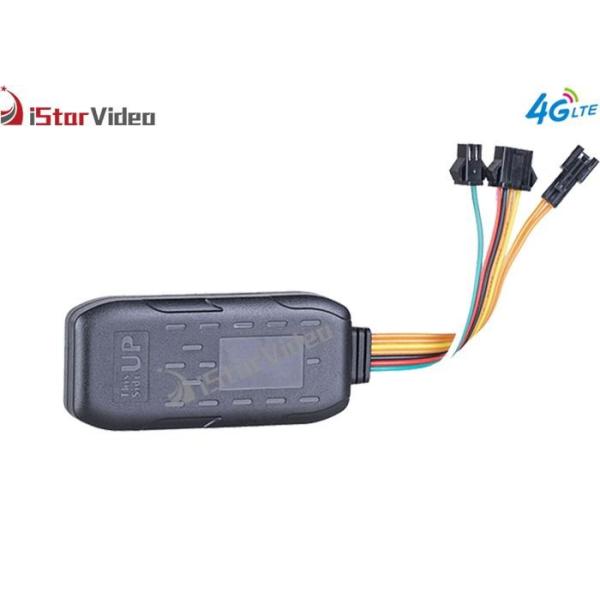

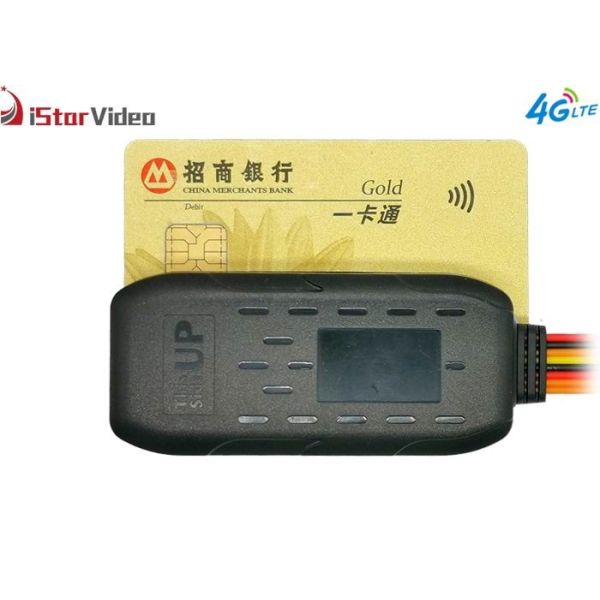

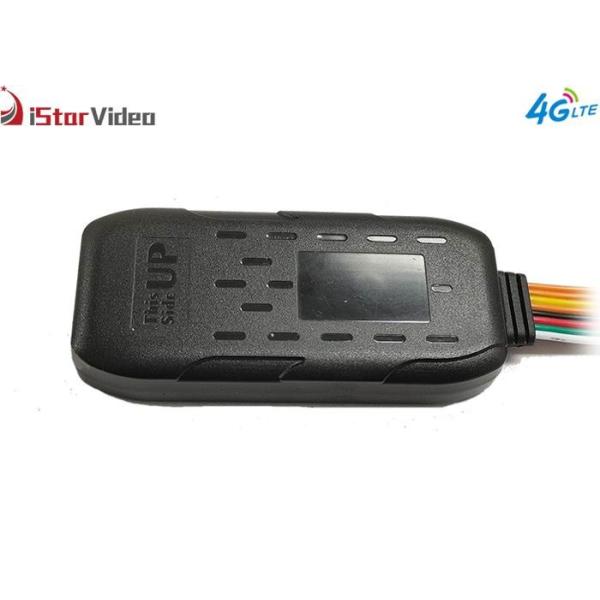

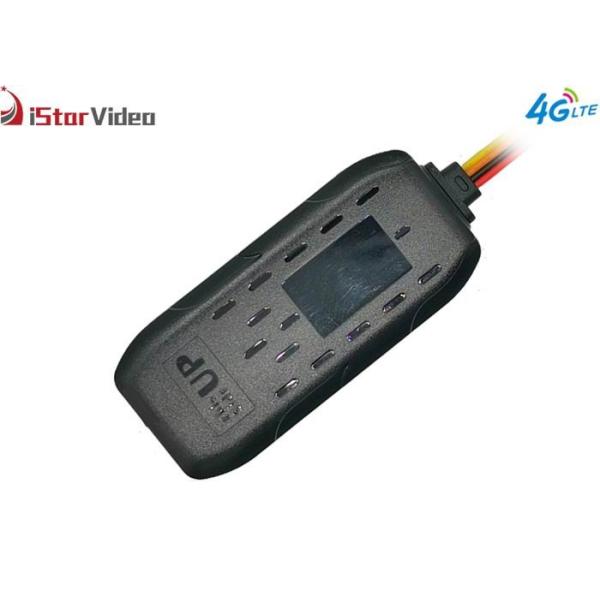

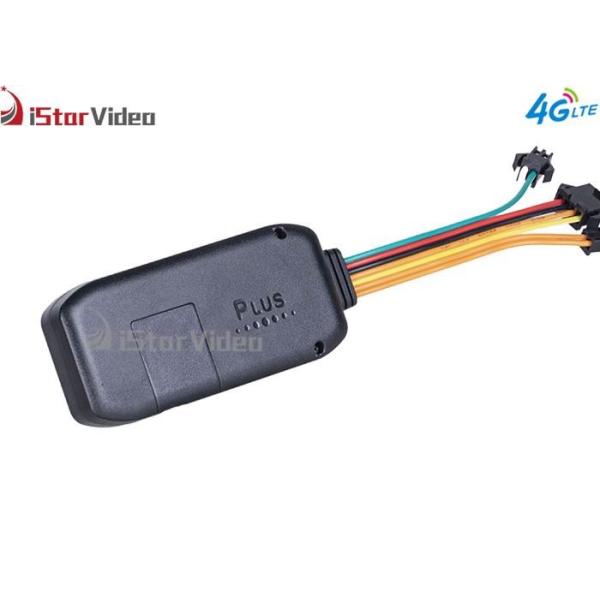

IP65 Rain Proof 4G LTE Gps Tracker SOS Alarm For Vehicles

IP65 Rain Proof 4G LTE Gps Tracker SOS Alarm For Vehicles


Main Feature: (4G GPS Tracker)

* 4G LTE Cat-1/Cat-M Communication Mode

* APP Application, iOS and Google Android

* Support Geo-Fence Alarm

* Support SOS Alarm

* Support Over Speed Alarm

* Support Low Battery Alarm

* Support Movement Detection

* Support ACC Detection

* Support Kilometer Report

* Support Oil Cut Off

* Support Vibration Alarm

* Support OTA Update

* Voltage: 9-100VDC, Suitable for All Types Of Vehicles


Functions: (4G GPS Tracker)

Remote Audio Monitoring , Remote Power/Fuel OFF , SOS Alarm , ACC Engion Detection , Power OFF Alarm , Overspeed Alarm , Vibration Alarm , Move Alarm , ACC Illegal Engion Alarm , etc.

Specification: (4G GPS Tracker)

ModeliSV-GTY18(4G)
Hardware specificationsCommunication Mode4G LTE Cat 1/M
Communication Band

LTE-FDD: B1/B3/B5/B7/B8/B20 (Europe)

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66(America)

Working Voltage9-100VDC
Average Current38mA@12VDC
RF Power ClassClass 5(Typ. 21dBm)
RF AntennaFPC, Built in Machine
GPS ICZKM AT6558
GPS Antenna25*25*4mm, Built in high-precision ceramic antenna
Backup BatteryPolymer Battery, 100mAh/3.7VDC
Working Time1-2 hours
LED Indicator2 LED: GPS-Blue LED, 4G-Red LED
SIM CardNANO SIM, Rotation
Interface DefinitionRX/TX/Power/GND/ACC/Relay/SOS1/SOS2
WaterproofIP65, Rain Proof
Working Temperature-20°C - 75°C
Operating Humidity5% to 95%
Net Weight46g
Product SizeLxWxT: 83*38*14mm
Locate informationGPS ICZKM AT6558
Working Current23mA@3.3V (BDS+GPS)
Signal ReceptionBDS/GPS/GLONASS/GALILEO/QZSS/SBAS
Number of RF ChannelsBDS+GPS+GLONASS Simultaneous Reception
GPS ChannelsGPS:1575.42 / BDS:1561.098 / Galieo:1575.42 / Glonass:1602 MHz
Tracking Sensitivity-162 dBm
Acquisition Sensitivity-156 dBm
GPS Starting Time/TTFFHot Start ≤ 1 sec(open sky)
Recapture: ≤ 1 sec
Cold Star: ≤ 32 sec(open sky)
GPS Position Accuracy<10m (1σ)
Timing Accuracy<30ns (1σ)
Update FrequencyMax: 10Hz
Software functionData TransmitTCP, SMS
Geo-Fence AlarmSupport
SOS AlarmSupport
Over Speed AlarmSupport
Low Battery AlarmSupport
Movement DetectionSupport
Kilometer ReportSupport
ACC DetectionSupport
Oil Cut OffSupport
Vibration AlarmSupport

Service

platform

History playback

Support 1 Months

(Refer to the actual support time of each service platform for details)

APP ApplicationiOS and Android APP



Percautions:

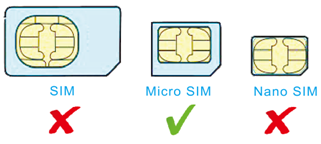

The terminal is suitable for GSM standard MICRO SIM card , does not apply to CDMA card.

Please cut off the power before installing or uninstalling the SIM card.

1. The SIM card should support GPRS and the GPRS should be opened.

2. Inquiry by call needs the SIM card supporting the calling line identification presentation.

3. If you enable the PIN code of the SIM card, please use your mobile phone to disable the PIN code.

4. Please make sure that the SIM card has sufficient balance.


Install the Terminal:

Suggest to install the terminal concealed by the dealer designated professional body.

Please make sure to install the terminal with this side towards the ground.

Notice

# Keep the terminal away from RF emission sources such as backing radar,car burglar alarm and other vehicle mounted communication devices.

# Suggest to use wide strong double-sided adhesive sponge to fix it, or use cable ties and other liable methods to fix it.

# Make sure the face upward as the terminal has internal GPS and GSM antenna and without metal blocks. Suggest to install the terminal in the following places:

1) The hiding place below the front windshield trim panel

2) The hiding place around the front dash

3) The place under the rear windshield

Notice: The GSM and GPS signal may be weakened if there is metal thermal insulation layer or heating layer on the front windshield, the terminal may work abnormally, so please change the place to install the terminal.
