| Categories | Long Reach Excavator Booms |
|---|---|
| Brand Name: | ZHONGHE |
| Model Number: | 20-27T |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | 12600 |
| Payment Terms: | T/T |
| Supply Ability: | 50set one month |
| Delivery Time: | 15`20days |
| Packaging Details: | Plastic wrap and bubble wrap packing |
| Material: | Q355B |
| Colour: | custom |
| Condition: | New long reach boom & arm |
| Warranty: | 1 Year |
| After-sales service provided: | Online support |
| Bucket capacity: | 0.4-0.5CBM |
| Company Info. |
| Kaiping Zhonghe Machinery Manufacturing Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
The video show of dipper arm extension
Product advantage of long excavator boom and arm:
01 Use Q355B material,
02 Adopts precision steel pipeline
03 Adopt alloy copper sleeve big arm base
04 Two layers groove welded to ensure
05 Double quality inspection before leaving
06 The tolerance of position size within 1 mm
07 Angle of boom and arm can reach 163°
The specification of excavator boom stick
| Excavator Ton | Total Length(mm) | (A)Boom(mm) | (B)Arm(mm) | Maximum Digging Radius(mm) | Maximum Digging Depth(mm) | Maximum Unloading Height(mm) | Maximum Digging Height(mm) | Bucket Volume(cbm) | Cylinder(ton) |
| 11-15T | 13000 | 7250 | 5750 | 11200 | 9000 | 7550 | 9350 | 0.15-0.3 | 12T |
| 20-25T | 15400 | 8220 | 7180 | 14500 | 11300 | 10400 | 12600 | 0.4-0.6 | 12T |
| 20-30T | 18000 | 10000 | 8000 | 17300 | 13000 | 17200 | 14000 | 0.4-0.7 | 12T |
| 35-40T | 20000 | 11000 | 9000 | 19200 | 14900 | 12900 | 15200 | 0.6-1.2 | 12T |
| 40-45T | 22000 | 12000 | 10000 | 21300 | 16000 | 14000 | 17000 | 0.5-1 | 20T |
| 40-50T | 24000 | 13000 | 11000 | 23000 | 17900 | 15200 | 18100 | 0.5-1.1 |
The excavator long stick introduction
1. Increased reach: The primary feature of an excavator long stick is its increased reach. By extending the length of the stick, excavator long sticks enable operators to reach further and work in areas that would otherwise be difficult or impossible to access.
2. Versatility: Excavator long sticks are highly versatile attachments. They can be used for a wide range of excavation tasks, from dredging and shoreline work to demolition and lifting.
3. Stability: Excavator long sticks are designed for stability and durability. They are built with high-strength materials and are engineered to withstand the rigors of heavy-duty excavation work.
1. Can an excavator long reach boom be used with different types of excavators?
Yes, excavator long reach booms are available in different sizes and configurations to fit various types and models of excavators. It is important to ensure that the correct size and weight capacity of the long reach boom is selected for the excavator being used to ensure safe and efficient operation.
2. How easy is it to install and remove an excavator long reach boom?
Installation and removal of an excavator long reach boom can vary depending on the specific model and type of attachment. However, most modern excavator long reach booms are designed for easy installation and removal, allowing for quick changes between different attachments on the job site. It is important to follow proper installation and removal procedures to ensure safe operation.

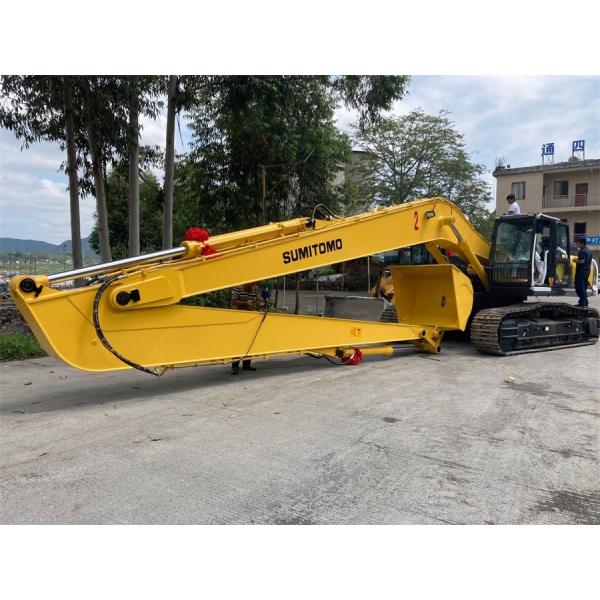

The pictures of excavator long arm for caterpillar
|
