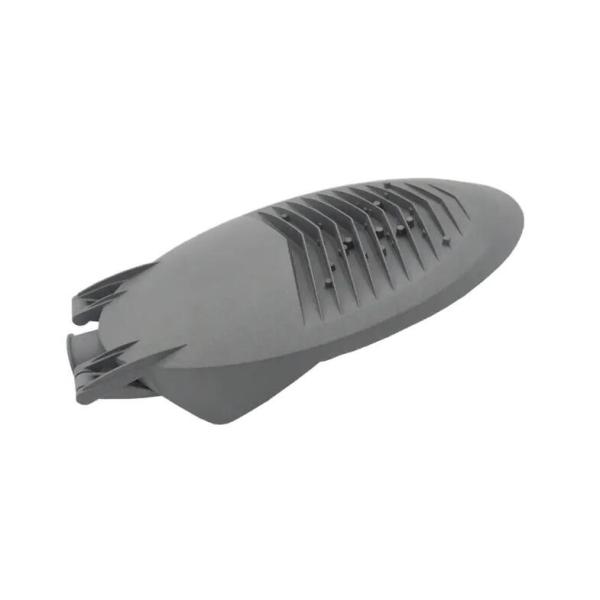

30w 40w 50w Road lighting fixtures with 3030 chip and famous brand driver zhaga

Technical Specifications:

Production Description:

- SL-05 series luminaire is the ideal solution that fulfills requirements of functional street lighting and residential areas,

which working with outstanding heat dissipation and compacting system. Equipped with high-quality electrical components,

long lifespan is assured. Dis-connector device, enable easy, safe and minimal cost for maintenance.

Efficient system also reduce energy consumption and creat a more attractive urban living environment

and visual comforts for public and residential areas.

- With patented housing design and range of optics, SL-03 series luminaires is also a perfect choice for project oriented usage.

Features:

- European standard high-pressure aluminium housing material ADC-3

-Patented Ribbon-Free housing technology

- Excellent thermal management

- Outstanding self-cleaning capability

- Patented optics for increased application efficiency

- Post-top or side-entry mounted +10° or -10° title

- Toughed glass with 4mm thickness, IK08 Impact Resistance; IK09 with 5mm glass optional

LED Engine Module

LED life time of 100,000 hours at 25℃ ambient temperature

Lumiaire efficiency: 110-130lm/w

CCT: 4000k (3000K/ 5000K/ 5700K upon request)

CRI: >70; >80 (upon request)

Operating temperature range: -30 to 45 ℃

Electrical

MeanWell / Inventronics optional (other brand of driver upon request)

Class I or Class II

Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/ 50-60Hz

10KV/20KV SPD

Power automatically switch off when opening

Dimming:

Dali

1-10V

PWM

AstroDIM for autonomous dimming with five independent levels

Smart control management system

Options:

Photocell

Surge protection device (up to 20KV)

0.5m External cable(Other length upon request)

Smart control device

Motion detection

Standards & Certifications:

CE, ROHS, ENEC pending, GS pending, IEC pending, LM79 pending, TM21 pending

Die-casting Man is a professional Aluminum die casting manufacturer with 23 years of experience.

It is not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.

All of the material and finished products will be tested under the ISO9001 quality control system. It has many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.

The team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Their new patent design of led street lights is very popular in the market.

In order to meet more and more requirements of customers, it offers ODM and OEM good service. Welcome to contact the sales and visit die-casting man to discuss face to face.

Let’s work together and do our best to make our world full of green light, make our cities more beautiful.
