| Categories | Pneumatic Air Cylinders |
|---|---|

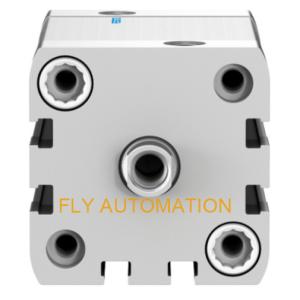

| Brand Name: | FESTO |
| Model Number: | ADN-40-40-I-P-A |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | EXW USD50-60 |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | plastic bag, carton，OPP bag |
| Part no: | 536305 |
| Brand: | FESTO |
| Type: | ADN-40-40-I-P-A |
| GTIN: | 4052568171100 |
| Weight: | 494g |
| Pneumatic connection: | G1/8 |
| Company Info. |
| Airwolf Automation |
| Verified Supplier |
| View Contact Details |
| Product List |
About product
1.Compact machine design saves space.
2.Easy to install in narrow space.
3.Extremely durable due to low wear materials.
4.Easy to identify and re order with FESTO accessories.
5.The materials used and the precise manufacturing process make it durable.
6.Long service life.
Technical Data
| Stroke | 40 mm |
| Piston diameter | 40mm |
| Piston rod thread | M8 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 21287 |
| Piston-rod end | Female thread |
| Position detection | Via proximity switch |
| Symbol | 00991217 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Basic weight for 0 mm stroke | 346g |
| Additional weight per 10 mm stroke | 37g |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Aluminium Anodised |
| Material seals | TPE-U(PUR) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
Another stroke as below
| Type | Order no | GTIN | Price |
| ADN-40-5-I-P-A | 536299 | 4052568171063 | USD50-60 |
| ADN-40-10-I-P-A | 536300 | 4052568005535 | USD50-60 |
| ADN-40-15-I-P-A | 536301 | 4052568171070 | USD50-60 |
| ADN-40-20-I-P-A | 536302 | 4052568171087 | USD50-60 |
| ADN-40-25-I-P-A | 536303 | 4052568171094 | USD50-60 |
| ADN-40-30-I-P-A | 536304 | 4052568005542 | USD50-60 |
| ADN-40-40-I-P-A | 536305 | 4052568171100 | USD50-60 |
| ADN-40-50-I-P-A | 536306 | 4052568171117 | USD50-60 |
| ADN-40-60-I-P-A | 536307 | 4052568171124 | USD50-60 |
| ADN-40-80-I-P-A | 536308 | 4052568171131 | USD50-60 |
