| Categories | Pneumatic Air Cylinders |
|---|---|
| Brand Name: | FESTO |
| Model Number: | SG-M16X1,5 |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | USD10-20 |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per week |
| Delivery Time: | 7-10 working days |
| Packaging Details: | Plastic bag, Carton |
| Part no: | 6146 |
| Type: | SG-M16x1.5 |
| GTIN: | 4052568001100 |
| Product weight: | 375g |
| Brand: | FESTO |
| Threaded connection: | Female thread M16x1.5 |
| Company Info. |
| Airwolf Automation |
| Verified Supplier |
| View Contact Details |
| Product List |
About product
1.Easy installation
2.Precision machining
3.Compact structure
4.Multilayer grinding process
5.High strength, low vibration, compact and durable
Product Technical Data
| Size | M16x1.5 |
| Conforms to standard | DIN 71752 ISO 8140 |
| Threaded connection | Female thread M16x1.5 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper by mass are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils |
| Ambient temperature | -40°C-150°C |
| Product weight | 375 g |
| Note on materials | RoHS-compliant |
| Material bolt | Steel Galvanised |
| Material clevis | Steel Galvanised |
| Material nut | Steel Galvanised |
Another size as below
| Type | Part no. | Weight(g) | GTIN | Price |
| SG-M4 | 6532 | 10 | 4052568001278 | USD8-15 |
| SG-M6 | 3110 | 22 | 4052568000363 | USD8-15 |
| SG-M8 | 3111 | 53 | 4052568000370 | USD8-15 |
| SG-M10x1.25 | 6144 | 103 | 4052568001087 | USD10-20 |
| SG-M12x1.25 | 6145 | 166 | 4052568001094 | USD10-20 |
| SG-M16x1.5 | 6146 | 375 | 4052568001100 | USD10-20 |

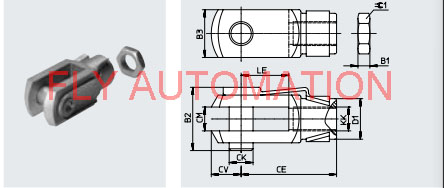

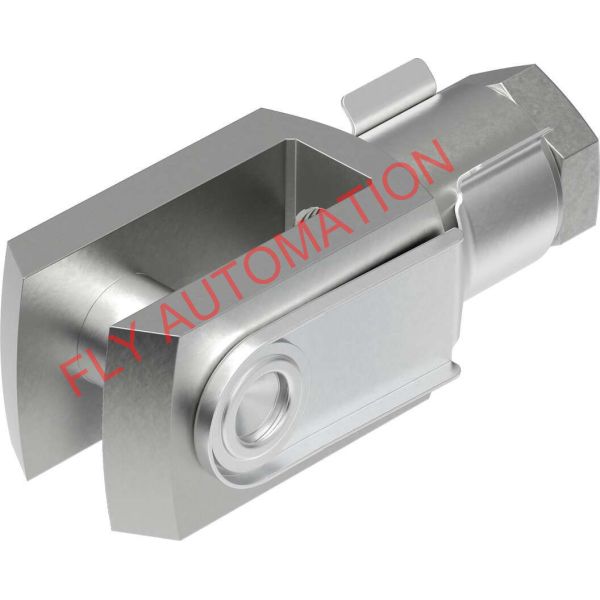

Rod clevis SG
Scope of delivery: 1 rod clevis, 1 clevis pin, 1 hex nut (M4: DIN 934, M6 ... M16: DIN 439)
Material: Galvanised steel Free of copper and PTFE RoHS-compliant
Delivery
1. If the products we have in store, we will send it out ASAP after
payment.
2. If the products which were customized, we will complete the
production within a specified period of time, and send it out the
first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT
will be normal ways. If you require use of a courier, we can do it.
There are many specifications of connectors, price and delivery time. Welcome to inquire.
|
