| Categories | ADSS Fiber Optic Cable |
|---|---|
| Brand Name: | Jiqian |
| Model Number: | ADSS 48B1 |
| Certification: | ISO9001 ROHS CE FCC |
| Place of Origin: | Guangzhou China |
| MOQ: | 1km |
| Payment Terms: | L/C, T/T, Western Union,Alipay |
| Supply Ability: | 6000km per month |
| Delivery Time: | Normally 3-5 days,it depends on order quantity |
| Packaging Details: | Plywood drum |
| Number of Conductors: | ≥ 10 |
| Strength member: | FRP |
| Storage/operating temperature:: | -40 to +70 °C |
| Application: | Overhead |
| OEM: | Yes |
| Manufacturer: | Yes |
| Structure: | stranded loose tube |
| Package: | Plywood Drum |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

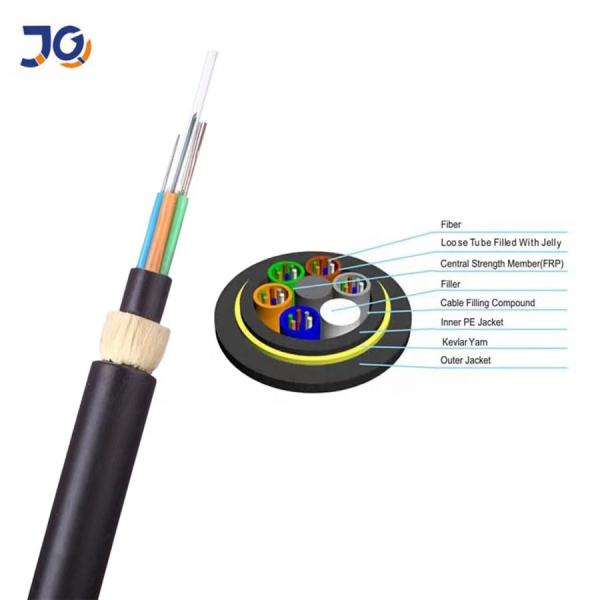

ADSS Self-supporting Span 100m Outdoor Fiber Optic Cable 24 48 96 Cores Fiber Optic
Cable Performance
Item | Contents | Value | |||
| 6/12/24 | 48 | 72 | 96 | ||
| Structure | Type | 1+6 | 1+6 | 1+8 | 1+12 |
Loose tube | Max Fiber counts/tube | 6 | 12 | 12 | 12 |
| Outer diameter (mm) | 1.9±0.1 | 2.2±0.1 | 2.2±0.1 | 2.2±0.1 | |
Central strength member | Material | FRP | |||
| Diameter (mm) | 1.4 | 1.6 | 2.0 | 2.2 | |
| PE layer diameter (mm) | -- | -- | 3.5 | ||
| Peripheral strength member | Material | FRP | |||
Sheath | Material | HDPE | |||
| Color | Black | ||||
| Thickness (mm) | Nominal: 1.6 | ||||
| Cable diameter(mm) Approx. | 9.8±0.2 | 10.0±0.2 | 10.5±0.3 | 11.8±0.3 | |
| Cable weight(kg/km) Approx. | 85 | 89 | 99 | 124 | |
Fiber parameter
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.8 | |
| Cladding diameter | μm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | μm | ≤0.5 | |
| Coating diameter | μm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | μm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |
Company profile:
1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the freight
3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001/CE/ROHS/FCC
6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment method?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
|
