Non-Contact Clamp-On Ultrasonic Flow Meter With Various Output

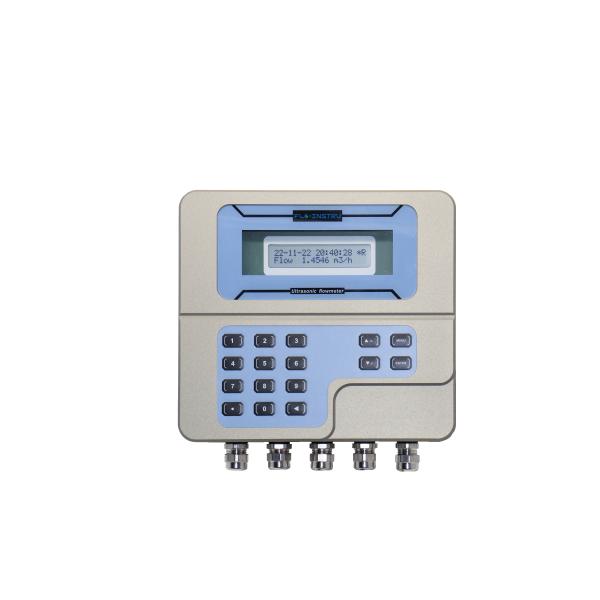

ST502 Clip-on Ultrasonic Flowmeter

Ultrasonic flow meters that use transit-time methods to measure flow.

Introduction

ST502 Ultrasonic flow meter use the most reliable digital signal processing technology, transmitting flow measurement for a wide range of liquid and pipe size with high accuracy and reliability. Combined the outstanding performance transducer with higher industrial level material, Flo-Instruments could have long time work without any worries.

Clear menu display selections make using instruments very convenient. Clamp-on transducers makes the unit more flexible over a wide range of applications.

The ST502 ultrasonic flowmeter is based on Transit-Time technology, which has high measurement accuracy. ST502 uses an clamp-on transducer, which can collect flow data simply by clamping it on the outside of the pipe, and it will never come into contact with the fluid, and will not cause liquid pollution, pressure reduction, leakage, etc.

Benefits

• Measures the actual flow and total consumption of various liquids
• CNC machined process, magnetic open cover technology without any screws.
• Adaptive signal processing algorithms optimize performance, ensuring accurate measurements even in challenging flow conditions
• Clear display interface and LCD display with alarm function, easy to operate and debug
• Utilize transit-time ultrasonic technology so as to realize bidirectional flow measurement by precisely measuring the time it takes for ultrasonic signals to transmit upstream and downstream
• Built-in 2G SD card and leverage storage capabilities to analyze historical flow data to make system optimization.
• Built-in keypad and simple menu system for fast and easy option of pipe diameter, pipe material, liquid type, and measurement units.

ST502 is a brand-new high-end product that is made of aluminum alloy material and realizes CNC processing method. It adopts the industry-leading full-sealed iron-absorbing side-opening technology without any screw locking, and the tedious steps of screwing are reduced. Such a convenient design truly realizes "one-second opening".

Principle

• Introduction to TVT

TVT(Transit-Time Vortex) technology represents a cutting-edge approach to ultrasonic flow measurement, combining the principles of transit-time ultrasonics with the capability to harness the vortex shedding phenomenon, delivering unparalleled accuracy and versatility in ultrasonic flow meters. This innovative integration technology enhances the accuracy, versatility, and performance of ultrasonic flow meters, making them well-suited for a wide range of applications across various industries and is a valuable solution for industries requiring precise flow measurements in varying flow conditions.

• Enhanced Accuracy in Turbulent Flows:

TVT technology excels in applications where fluid flow conditions vary between laminar and turbulent. The incorporation of vortex shedding data enhances accuracy in challenging flow environments.

• Versatility in Fluid Types:

TVT technology is versatile and suitable for a wide range of fluid types, including liquids with varying viscosities and densities.

Flo-Instruments ST502 ultrasonic flowmeter offers high-accurate and repeatable flow measurement for liquids at an economical price. It is made of strong metal case. Combined the outstanding performance transducer with high industrial grade material, it's ideal for pipes size from 1''(25mm) up to 200''(5000mm) in diameter. IP68 sensors that are easy to install requires this pipe not to be cut, thus reducing installation and labor costs. Simple interface makes it very convenient to operate.

Specifications

Flo-Instruments has been specialized in the field of ultrasonic flow meters, and has over 20 years of relevant engineering and installation experience, covering clamp-on and insertion, wall-mounted and portable. We are keeping focusing on the development of industrial, commercial, and civilian flow measurement technology and the requirements of customers.

What make Flo-Instruments unique is that we have made major breakthroughs in many fields, such as water treatment plant, HVAC, building management system, recirculating aquaculture system, cleaning machine, chemical industry, farmland irrigation, hydroelectric power plant, aerospace, and others.

Advanced and high-efficiency teams make us feature the ability to self-research, self-design full range of ultrasonic flow meters and ultrasonic energy meters and we are combined with years of experiences and customer's feedback to innovate a new generation of liquid flow measuring instrument with new colour matching, new appearance, new function and so on.

As experienced teams in measurement and transmission technology, Flo-Instruments has won unanimous praise from customers regardless of the experience in the installation and measurement of the instrument, or the professional presentation of the accuracy and stability of the instrument itself. Take advantage of our services anytime, Flo-Instrument is your reliable partner in this field.
