| Categories | High Accuracy Digital Inclinometer |
|---|---|
| Brand Name: | RION |
| Model Number: | DAM825 |
| Certification: | CE |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 Pieces |
| Price: | $280.00/Pieces |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 500/month |
| Delivery Time: | 5 days for sample |
| Packaging Details: | 1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton |
| Communication method: | 470M Lora communication |
| Supported resolution: | 0.01/0.001° |
| LCD screen: | 64 True Colors Night Vision Display Screen |
| Power: | 3.7V Chargeable lithium battery |
| Working humidity: | 85%RH |
| Size: | L115×W38×H77 |
| Company Info. |
| Shenzhen Rion Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

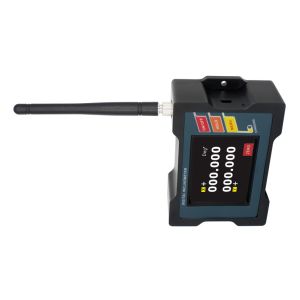

Precise Wirless Angle Meter Lora Communication Tilt Sensor Wireless Inclinometer Sensor With Wirless Monitor
▶ SPECIFICATIONS
| DMA825 | Parameter | Unit |
| Communication method | 470M Loar communication | / |
| Supported resolution | 0.01/0.001 | ° |
| LCD screen | 64 True Colors Night Vision Display Screen | / |
| LCD Viewable area size | L57.6*W43.2 | mm |
| Power | 3.7V Chargeable lithium battery | V |
| Working humidity | 85 | %RH |
| Storage temperature | -20~+35 | ℃ |
| Working temperature | -20~+70 | ℃ |
| charging temperature | 0~+45 | ℃ |
| Charging interface | 5V Standard USB connector | / |
| Ideal charging time | 12 | hour |
| Battery continuous working time | 8 | hour |
| Anti-vibration | 10g@11ms,3 Axial Direction (Half Sinusoid) | g |
| impact resistance | 10grms,10~100Hz | g |
| Waterproof grade | IP54 | / |
| Material | Aluminum alloy anodizing | / |
| Size | L115×W38×H77 | mm |
| Weight | 300 | g |
▶ FEATURES
★ Remote display of all inclination product data of RION
★ Transmission distance up to: 200m
★ Resolution: 0.01°/0.001°
★ Powered by lithium battery
★ Wide temperature operation -20~+70℃
★ IP54 protection grade
★ Shell size: L115×W38×H77mm
★ For installation with screw holes
▶ APPLICATION
★ Engineering vehicle leveling
★ Bridge and dam monitoring
★ Laser equipment positioning
★ Angle control of medical equipment
★ Attitude navigation of underground drilling rigs
★ Railway gauge and gauge leveling
★ Precision machine tool level control
★ Geological equipment tilt monitoring

|   |
