| Categories | LCM LCD Display |
|---|---|
| Brand Name: | gena |
| Place of Origin: | china |
| MOQ: | 1000PCS |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50000PCS/Day |
| Delivery Time: | 10-15Days |
| Packaging Details: | EPE+CARTON |
| Display Format: | 16x2 |
| Display Mode: | STN, Transmissive, Negative |
| LCD Color: | Display dot : White; Background: Blue |
| Outline Dimension: | 80.0(W) x36.0(H) x 13.1 mm |
| Viewing Area: | 64.5MIN(W) x15.8MIN(H)mm |
| Drive IC: | ST7066U-0A English / Japan Font |
| Viewing Direction: | 6 O’clock |
| Backlight: | White |
| Driving Method: | 1/16 Duty, 1/5 Bias |
| Operating Temp.: | 0℃~+50℃ |
| Storage Temp.: | -10℃~+60℃ |

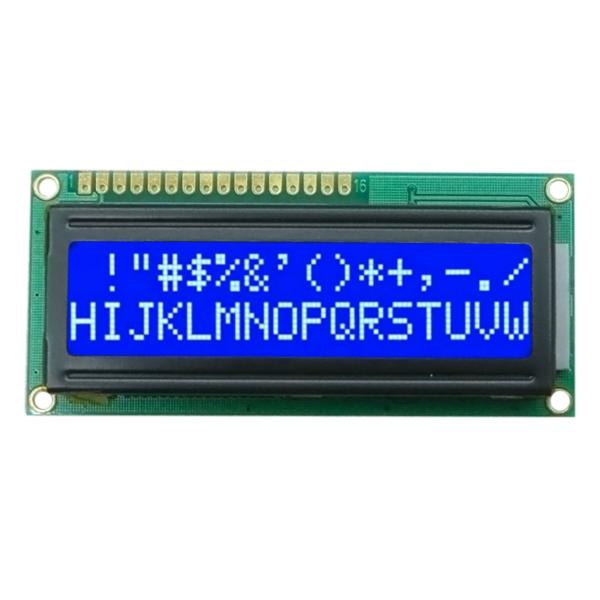

Transmissive LCM 1602B COB LCD Module 16x2 Character LCD Display
| LCD Name | Transmissive LCM 1602B COB LCD Module 16x2 Character LCD Display | ||
| Display Format | 16character*2 line | Display Mode | STN, Transmissive, Negative |
| LCD Color | Display dot : White Background: Blue | Display Type | Character COB |
| Outline Dimension | 80.0(W) x36.0(H) x 13.1(T) mm | Viewing Area | 64.5MIN(W) x15.8MIN(H)mm |
| Drive IC | ST7066U-0A | Pin No. | 16 Pin |
| Viewing Direction | 6 O’clock | Interface Input Data | 4-bit or 8-bit MPU |
| Backlight | WHITE | Driving Method | 1/16 Duty, 1/5 Bias |
| Operating Temp. | 0℃~+50℃ | Storage Temp. | -10℃~+60℃ |
Applications
LCM LCD module can be widely used in various industries such as,
instruments and metersoffice equipments,
industrial control,
household appliancecommunicationsmedical treatment,
bank display terminals
digital products,navigation and so on.
we offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 2.4" TFT LCD, 2.8" TFT LCD, 3.2" TFT LCD, 3.5" TFT Display, 4.3 inch TFT LCD, 5 TFT LCD, 5.6 TFT LCD, 5.7 inch Display, 7 " TFT LCD, 8" TFT, 9" TFT, 10.1" TFT LCD, 10.2" TFT LCD, 12.1" TFT LCD , 12.3" TFT LCD (diagonal size of the active area) and so on . There are more than 250 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.
Selecting GENA has lots of advantages:
You get products developed by people with high levels of expertise in electronics and modules creation.
All finished modules passed continuing stringent quality checks starting at the production line.
The company has a strong in-house team for research and development, enabling them to offer fresh products and unique ideas.
Display modules are made available at affordable prices.
|
