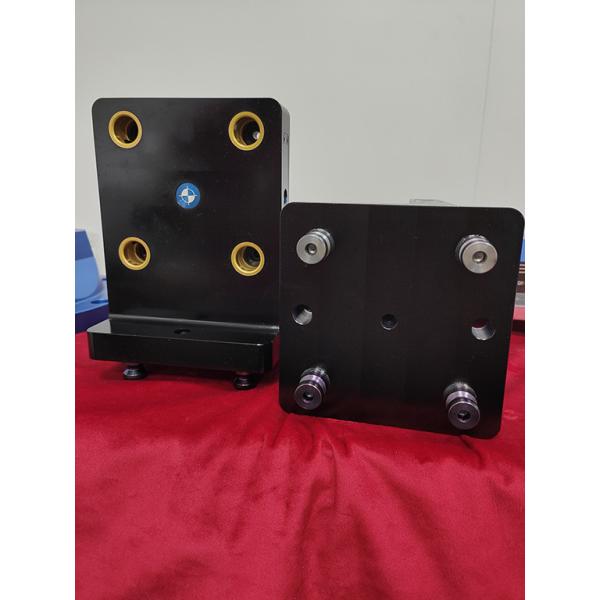

Mauaul zero point clamping quick-change pallet system SK96-A90

The four-hole zero-point locator is a positioning tool that can quickly exchange fixtures and fixed
fixtures, The standard installation method enables tools such as vices, pallets, chucks, etc, to be
quickly and repeatedly changed between various cnc machine tools.

Available with predefined mounting holes or without hole pattern for individual adaptation to milling machine tables, clamping towers, pallets or CNC rotary tables.

No need to disassemble and calibrate time.

Size:150x149x199mm
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: alloy steel
Weight:5.0Kg

Dongguan LiHeng machinery industry co.,ltd

was established in 2008 in China,specialized in designing and manufacturing of Precision Workholding

Fixtures,clamping tools for CNC milling,grinding machines.

Our products have 52 and 96 series for 3/ 4/ 5 axis cnc maching working machine.

Our Products include precision 4 hole palletes position fixture and self centerning vise two parts.

Our Manufacture is in GuangDong, Dongguan city, China .And has exported for 10 years to Malasiya, Singapore,Southest Asia, Europe, South Korea,Russia, USA, Canada,Mexico, Brazil, Australia.

We also accept OEM work, customer can send us a drawing if the order quantity is reasonable to make a production.

AST always pursues to produce high quality products at the lowest price,fast delivery,best service.

We are looking forward to your kind cooperation, and we would highly appreciate any feedback regarding our products quality,service.
