708-2H-15320 708-2H-15330 7082H15320 7082H15330 Spring KOMATSU PC400-7 Hydraulic Pump Parts

708-2H-15320 708-2H-15330 7082H15320 7082H15330 Spring KOMATSU PC400-7 Hydraulic Pump Parts

Spec Sheet

Excavator spare parts name	Spring
Equipment Model	PC400-7 PC450-7 PC450-8 PC400-8 PC550-8
Parts egory	KOMATSU hydraulic pump parts
Spare parts Condition	Brand new, OEM quality
MOQ of order(PCS, SET)	1 PCS
Parts Availability	In stock for urgent delivery
Delivery Lead time	1-3 days

Appliion

EXCAVATORS PC400 PC450 PC550
MOBILE CRUSHERS AND RECYCLERS BR580JG Komatsu

More spring applicable for KOMATSU machines

709-94-91751 SPRING

D275A, D375A, PC300, PC350, PC400, PC450, PRESSURE, RAIN

702-16-54420 SPRING

CARRIER, PC130, PC220, PC240, PC290, PC300, PC350, PC400, PC88MR, PRESSURE, RAIN

207-30-74142 KOMATSU

207-30-74142 SPRING

430FX, 430FXL, BR550JG, BR580JG, PC220LL, PC270, PC290, PC300, PC308, PC350, PRESSURE, RAIN, XT430

723-40-71340 SPRING

AIR, PC200, PC220, PC228, PC228US, PC240, PC270, PC290, PC300, PC350, PC400, PC450, PRESSURE, RAIN

208-30-54141 KOMATSU

208-30-54141 SPRING

PC300, PC300HD, PC380, PC400, PC400ST, PC450

6251-41-4450 KOMATSU

6251-41-4450 SPRING, VALVE

HM300, PC400, PC450, PC490, SAA6D125E, WA470, WA480

12R-60-11230 SPRING

AIR, BOOM,, CARRIER, D275A, D375A, D65EX, D65PX, D65WX, GD555, GD655, GD675, PC130, PC160, PC190, PC220, PC240, PC290, PC300, PC350, PC400, PC450, PC78US, PC78UU, PC88MR, PRESSURE, RAIN

208-30-74140 KOMATSU

208-30-74140 SPRING

445FXL, 450FXL, PC300, PC300HD, PC350HD, PC390, PC400, PC450, PC490, PC550, XT445L, XT450L

6150-41-4450 KOMATSU

6150-41-4450 SPRING

6D125E, D87E, D87P, DCA, EGS360,380, PC400, PW400MH, S6D125, S6D125E, SA6D125E, WA470

702-16-41120 SPRING

PF3W, PW100, PW100N, PW100NS, PW100S, PW150, PW170, PW200, PW210, PW60, PW60S

130-60-42330 SPRING

D20A, D375A

71 474 SPRING

KOMATSU

702-16-72150 SPRING, INNER PORT P1

SK1020, SK1026, SK815, SK820

4D115A4523 SPRING

4D115

4D115A4522 SPRING

4D115

UC1100311131 SPRING

WA30, WA40, WA50

YMR000169 SPRING

230, 235, 245, PC10, PC20, PC30, PC45, SK05, SK05J, SK07, SK07J

709-12-11240 SPRING

WA450, WA500, WA600

709-12-11250 SPRING

WA450, WA500

709-12-11230 SPRING

WA450, WA500, WA600

709-12-11220 SPRING

568, WA450, WA500, WA600

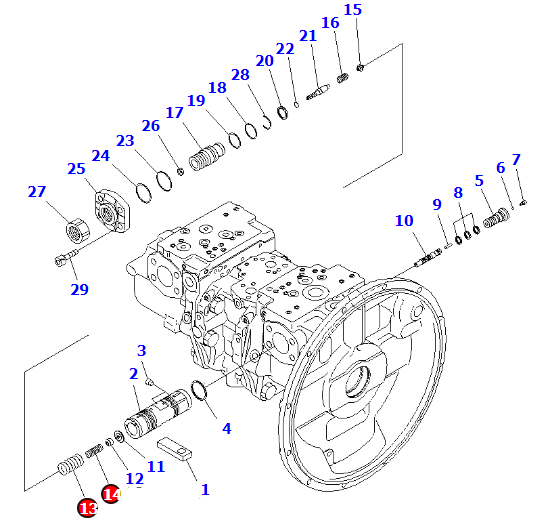

Parts Diagram

Pos.	Part No	Qty	Parts name	Comments
	708-2H-00022	[1]	PUMP ASS'Y Komatsu	248 kg.
	["Field_1: SN : J20001 --"] analogs:["7082H00350", "7082H00120", "7082H00150", "7082H00024", "7082H00027", "7082H00025", "7082H01022", "7082H01120", "7082H00026", "7082H00191"] \|$1.
	708-2H-01022	[1]	PUMP SUB ASS'Y Komatsu	248 kg.
	["Field_1: SN : J20001 --"] analogs:["7082H00350", "7082H00120", "7082H00150", "7082H00024", "7082H00027", "7082H00022", "7082H00025", "7082H01120", "7082H00026", "7082H00191"] \|$4.
1	708-2H-34150	[1]	SLIDER Komatsu	0.453 kg.
	["Field_1: SN : J20001 --"]
	708-2H-03411	[1]	VALVE ASS'Y, PC Komatsu	6.132 kg.
	["Field_1: SN : J20001 --"] \|$6.
	708-2H-03022	[1]	PISTON ASS'Y, SERVO Komatsu	2.91 kg.
	["Field_1: SN : J20001 --"] \|$7.
4	708-2G-15320	[1]	SEAL Komatsu	0.002 kg.
	["Field_1: SN : J20001 --"]
5	708-2H-15310	[1]	PLUG Komatsu	0.115 kg.
	["Field_1: SN : J20001 --"] analogs:["7082H15311"]
6	708-2L-35760	[1]	BALL Komatsu	0.001 kg.
	["Field_1: SN : J20001 --"]
7	708-2L-35770	[1]	PLUG Komatsu	0.005 kg.
	["Field_1: SN : J20001 --"]
8	708-2L-35690	[3]	SEAL Komatsu	0.003 kg.
	["Field_1: SN : J20001 --"]
9	708-2L-35170	[1]	PIN Komatsu	0.01 kg.
	["Field_1: SN : J20001 --"]
10	708-3M-15670	[1]	SPOOL Komatsu	0.03 kg.
	["Field_1: SN : J20001 --"]
11	708-2G-15290	[1]	RETAINER Komatsu	0.05 kg.
	["Field_1: SN : J20001 --"]
12	708-2G-15140	[1]	SEAT Komatsu	0.01 kg.
	["Field_1: SN : J20001 --"]
13	708-2H-15330	[1]	SPRING Komatsu	0.15 kg.
	["Field_1: SN : J20001 --"]
14	708-2H-15320	[1]	SPRING Komatsu	0.03 kg.
	["Field_1: SN : J20001 --"]
15	708-2G-15151	[1]	SEAT Komatsu	0.01 kg.
	["Field_1: SN : J20001 --"]
16	708-2H-15340	[1]	SPRING Komatsu	0.01 kg.
	["Field_1: SN : J20001 --"]
17	708-2G-14340	[1]	SCREW Komatsu	0.622 kg.
	["Field_1: SN : J20001 --"]
18	07000-B3038	[1]	O-RING Komatsu	0.002 kg.
	["Field_1: SN : J20001 --"]
19	708-2G-15230	[1]	RING, BACK-UP Komatsu	0.001 kg.
	["Field_1: SN : J20001 --"]
20	708-2G-15260	[1]	SEAL Komatsu	0.003 kg.
	["Field_1: SN : J20001 --"]
21	708-2G-15240	[1]	PLUG Komatsu	0.08 kg.
	["Field_1: SN : J20001 --"]
22	07000-B2012	[1]	O-RING Komatsu China	0.001 kg.
	["Field_1: SN : J20001 --"]
23	07000-B2050	[1]	O-RING Komatsu	0.002 kg.
	["Field_1: SN : J20001 --"]
24	708-2G-15310	[1]	RING Komatsu	0.001 kg.
	["Field_1: SN : J20001 --"]
25	708-2L-44161	[1]	COVER Komatsu	1.502 kg.
	["Field_1: SN : J20001 --"]
26	01580-10806	[1]	NUT Komatsu	0.005 kg.
	["Field_1: SN : J20001 --"] analogs:["801920104"]
27	708-2L-35540	[1]	NUT Komatsu	0.12 kg.
	["Field_1: SN : J20001 --"] analogs:["7082L35290"]
28	708-2G-15330	[1]	RING, WIRE Komatsu	0.005 kg.
	["Field_1: SN : J20001 --"]
29	01252-61645	[4]	BOLT Komatsu	0.119 kg.
	["Field_1: SN : J20001 --"]

Description

Hydraulic pumps and valves are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.

Advantage

1. The pump and valve parts are built to fit to the genuine excavator system.

2. The pump parts and valve are supplied strictly according to the genuine parts alog.

3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
