Horizontal Auto V Grooving Machine Anti Rust Low Energy Consumption

CNC Hydraulic Automatic V Cutting Machine For Sheet Matel Grooveing,CNC V Cutting Slotting Machine

Features:
1) RGHK series V-grooving machine is an upgrade product of traditional planer.
2) RGHK high-speed CNC grooving machine for thin plate adopts precision ball screw as power transmission component, which with high machining accuracy is especially important for high-grade products.
3) For material clamping device, hydraulic system is used as power , it brings high pressure, reliable fastening, low noise and low energy consumption.
4) Adopt frame structure, connected with high strength bolt, through heat treatment to eliminate stress of worktable, to ensure overall rigidity and reduce deformation.
5) When this machine working, the beam is fixed, the workpiece is conveyed by after by back-feed mechanism. The working surface is made of carbon steel,the high frequency surface hardness achieve 55 to 60 HRC after quenching (ordinary mesa < 30 HRC), which makes workbench is stiffer than stainless steel, it keeps the workbenth surface flatness ≤±0.03mm, avoid scratches caused of low hardness. This technology makes sure the precision of v groove and extends the service life of the equipment.
6) There are supporting devices equipped in the front and back of the workbenth to prevent scratching the metal plate material in the process.
7) The CNC system is easy to master and operate. As long as the processing parameters are input, the equipment will be processed automatically, and there are multiple interlocking safeguards to ensure the safe operation of the equipment.

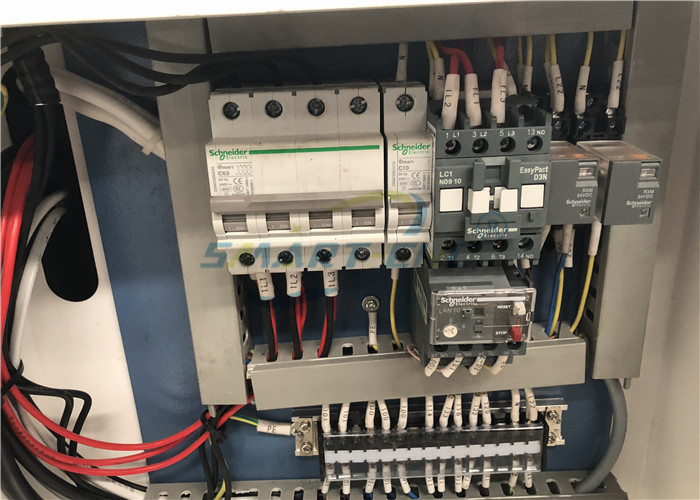

8) Mainly electrical components are imported, in line with international standards, safe and reliable, long life, anti-interference ability, and electric control cabinet is equipped with heat sink.

2. Main specification

3. Configuration

Wuxi Smart CNC Equipment Group CO.,LTD is a professional manufacturer and exporter in sheet metal machine tools,Wuxi Smart CNC Group their branch company including VISTMAC Machine Manufacturing Co.,Ltd . WUXI SMART CNC has 30 years history in sheet metal working machinery manufacture and export experience.
SMART CNC has always been manufacturing and distributing CNC Fiber Laser Cutting Machine, CNC press brake, hydraulic shear, plate rolling machine, Pipe Bending Machine as well as other sheet metal processing machine, including 5 major kinds, 20 series and more than 200 specifications. The products manufactured are widely employed in field of Machinery Manufacturing, Metallurgy, Petrifaction, Electrical Power, Wind Power Generation, Aerospace, National defense and military industry, Auto-industry, Railway, Shipbuilding, Natural gas and oil transportation. SMART CNC machines have been exported to more 50 countries and regions.
Capability of company: SMART CNC Group has over 250 employees with 310,000m2 floor space, 120,000 m2 construction spaces, among which 60,000 m2 manufacturing space, 300 sets of processing machines with more than 40 sets of heavy duty precise processing equipment.
Applied field: SMART CNC products are wide used in the field of Machineries, auto-making, vessel manufacturing, petrochemical industry, power supply, metallurgy, aerospace, military defense, railway vehicle, engineering machineries, metal forming machineries, wind power generation, natural gas and oil transportation pipe and construction pipe.
Research and develop capacity: 1 National R&D Center awarded by country, 1 Jiangsu Provincial Research Center for Metal forming engineering, 40 professional engineers, among them 10 senior professionals, 1 Outstanding Science expert of Jiangsu Province, 2 Pro. Senior Engineers, 4 engineering doctors from Xi’an Jiaotong University, 8 Engineering management masters, 20 Engineering masters, SMART CNC are honored as Chinese famous trade mark, National May Day Medal Winner, the one of top 10 self-innovation enterprises awarded by CMTBA, one of top 10 companies of nationwide metal processing innovation capacity, also awarded as most innovative company, advanced technological innovation company, The fourth batch of innovative pilot enterprise awarded by Ministry of Science and Technology.
ISO9001:2008 International quality management system certification, ISO14001:2004 environmental management system certification, OHSAS18001:1999 occupational health and safety management system certification.
CE and TUV
Quality undertaking: We are always devoting ourselves to “Quality First, Customer First” principles and keeping our promises for quality, striving for offering products with excellent quality, and we are very pleased to cooperate with friends from all over the world and always achieving co-development.
