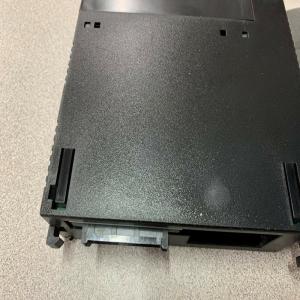

IC200CHS111 GE I/O Interposing Relay Base (replaceable relays), fused (8 amps, replaceable), 16 points

Categories	Industrial Servo Motor
Brand Name:	GE
Model Number:	IC200CHS111
Place of Origin:	USA
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	100
Delivery Time:	5-8 work days
Packaging Details:	New in original box
Certification:	CE
Brand:	GE
Model:	IC200CHS111
Origin:	USA
warranty:	1 year

Contact Now

Add to Cart

Company Info.

Shenzhen Wisdomlong Technology CO.,LTD

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

IC200CHS111 GE I/O Interposing Relay Base (replaceable relays), fused (8 amps, replaceable), 16 points

I/O Interposing Bases
VersaMax I/O interposing disconnect bases enable the IC200CHS003 to connect to a wide range of termination bases . The Relay bases provide additional protection and higher amperage outputs . The Disconnect bases enables the user to easily disconnect signals, on a per point bases, from the I/O module .

	IC200CHS003	IC200CHS101	IC200CHS102	IC200CHS111
Product Name	VersaMax I/O Carrier, Connector Style . A connecting cable (IC200CBL1xxx) and interposing base (IC200CHS011, CHS012, CHS014, CHS015, IC200CHS1xx or IC200CHS2xx) are required . This carrier can be used with all VersaMax I/O modules EXCEPT the following, due to their high isolation requirements: IC200MDL144 Input 240 VAC 4 Point Isolated Module; IC200MDL244 Input 240 VAC 8 Point Isolated Module; IC200MDD850 Mixed 240 VAC Isolated 4 Point / Output Relay 2 .0A Isolated 8 Point Module	Input or Output Interposing Disconnect Style 16 Points . The base has an individual knife-switch disconnect for each signal and common terminal and its corresponding pin on the VersaMax cable connector . Requires IC200CHS003 and a connecting cable IC200CBL1xxx	Expansion Input or Output Interposing Disconnect Style 16 Points . The base has an individual knife-switch disconnect for each signal and common terminal and its corresponding pin on the VersaMax cable connector . Requires a IC200CHS101 main base, can not be directly connected to IC200CHS003 .	I/O Interposing Relay Base (replaceable relays), fused (8 amps, replaceable), 16 points . The relays on these interposing terminals are intended to be controlled with standard 24 VDC 0 .5A VersaMax output modules (IC200MDL740 and IC200MDL750 using IC200CHS003 base and connected by IC200CBL1xxx) .
Lifecycle Status	Active	Active	Active	Active
Field Termination Type	ntegrated	Non-Integrated	Non-Integrated	Non-Integrated
Wiring Termination Style	Connector	Box	Box	Box
Removable Terminals Connectors	N/A	No	No	No
Input Voltage	N/A	All discrete modules supported except MDL144, 244, 331, 730 and MDD840, 843, 850 .	All discrete modules supported except MDL144, 244, 331, 730 and MDD840, 843, 850 .	24 VDC from MDL740 and MDL750
Output Voltage	N/A	All discrete modules supported except MDL144, 244, 331, 730 and MDD840, 843, 850 .	All discrete modules supported except MDL144, 244, 331, 730 and MDD840, 843, 850 .	0-125 VDC, 5/24/125 VDC nominal; 0-265 VAC (47-63 Hz), 120/240 VAC nominal
Load Current per Point	N/A	N/A	N/A	8 .0 A for 5-265 VAC, 2 .0 A for 5-30 VDC, 0 .2 A for 31-125 VDC (Replaceable Fuse)
Protection	N/A	N/A	N/A	Replaceable Fuse
Points per Common	N/A	N/A	N/A	Isolated Per Point
Dimensions (W x H x D)	66 .8 mm (2 .63 in) x 133 .4 mm (5 .25 in) x 70 mm (2 .75 in), not including the height of the DIN-rail	115 mm (4 .5 in) x 126 mm (4 .95 in) x 65 mm (2 .6 in), not including the height of the DIN-rail	115 mm (4 .5 in) x 126 mm (4 .95 in) x 65 mm (2 .6 in), not including the height of the DIN-rail	253 .7 mm (9 .9 in) x 126 mm (4 .95 in) x 73 mm (2 .8 in), not including the height of the DIN-rail
Cables	Requires a IC200CBL1xxx cable	Requires a IC200CBL1xxx cable	N/A	Requires a IC200CBL1xxx cable
