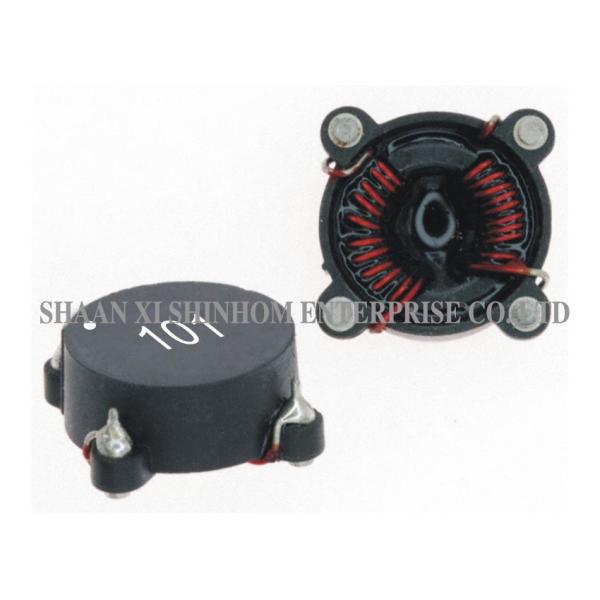

Light Weight Electronic Choke Coil 17.4*17.4*7.62mm High Saturation Material

STC06 Series surface mount toroidal coils, Toroidal common mode incuctor,17.4*17.4*7.62mm SMD Common mode chokes

STC06 Series common mode choke used in the Electronic Appliances,DC - DC Conversion (Paraller Mode),Isolation/Coupling(Transformer),Input Filter(Serial Mode) and EMI/RFI Suppression etc.

FEATURES:

• Inductance: 100uH to 12mH
• Higher Frequency
• High Saturation Material
• Low EMI Radiation
• Pick and PLace
• Low DC Resistance

TECHNICAL INFORMATION:

• Inductance measure at 100KHz 0.1VRms.
• Insulation Resistance: 100Vdc 1KMΩmin.
• Soldering temperature:260℃ for 4±1 seconds
• Operating temperature:-40℃ to +125℃
• Storage Temperature: -55℃ to +125℃
• Different package available per special request
• Max of 35% saturation on DC bias applied
