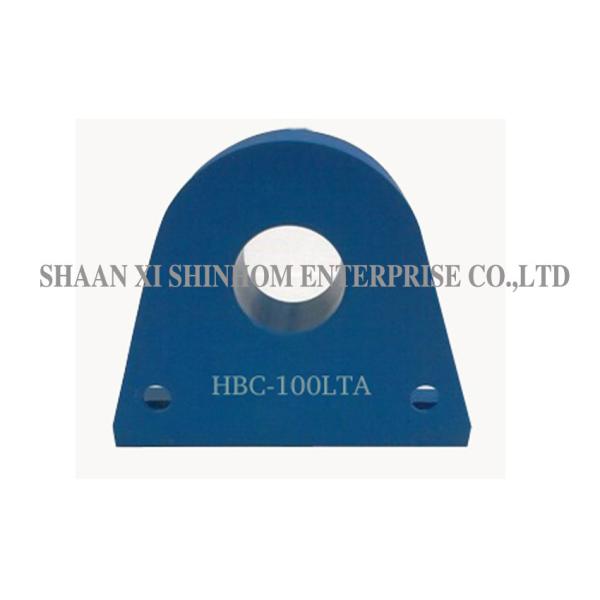

Customized Hall Effect Based Current Sensor For UPS / SMPS Current Monitoring

HBC-LTA Series Current Transducer Hall Effect Sensor for UPS and SMPS Current Monitoring with up to 300A input

Attention:

• When the current will be measured goes through a sensor, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the sensor).
• The output amplitude of the sensor can be adjusted according to users requirements.
• Custom design in the nominal input current and the output voltage available

Features:

• Sensor with a galvanic isolation between primary and secondary circuit
• Provides accurate electronic measurement of DC, AC or pulsed currents
• Operating currents: 0 to 300A
• Rated output current: 50mA±0.5%, 100mA±0.5%
• Mount easily
• High accuracy grade

Applications:

• Power supplies for welding applications
• Battery supplied applications
• AC variable speed drives and servo motor drives
• Switched mode power supplies (SMPS)
• Uninterrupted power supplies (UPS)
• Static converters for DC motor drives

ELECTRICAL DATA:

Notes: Product specifications can be customized
