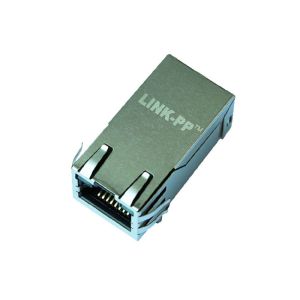

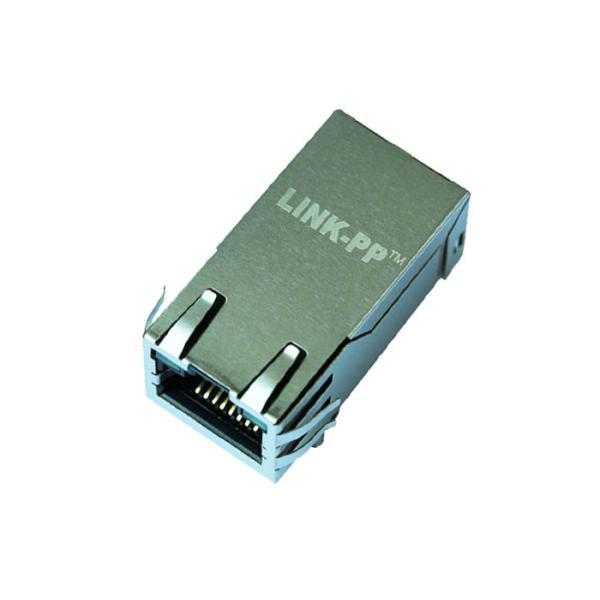

B50(150-57)G8-13-P623-F52 RJ45 Jack With 10/100/1000Base-T Magnetic LPJK0036AINL

B50(150-57)G8-13-P623-F52 RJ45 Jack With 10/100/1000Base-T Magnetic LPJK0036AINL

Shielded 1x1 Port 8P8C RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics ,Yellow&Green/Green LED,Tab UP,RoHS
LINK-PP Part Number	LPJK0036AINL
Other Part Number	B50(150-57)G8-13-P623-F52
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	8
Diodes	Without DIODES
LED Option	Yellow&Green/Green LEDs
Latch	TAB UP
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (Inches)	0.531
Package Height (mm)	13.50
Package Length (Inches)	1.280
Package Length (mm)	32.50
Package Width (Inches)	0.654
Package Width (mm)	16.60
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	With
Speed	10/100/1000 Base-T
Temperature	0 TO + 70
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Description:

1X1 RJ45 Magjack with/without leds, meeting IEEE 802.3ab

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,

100% test

Flexible delivery time
