Outdoor Self-proclaimed Fiber Optic Armoured Cable GJYXCH 2B6 G657A2

Outdoor Self-proclaimed Fiber Optic Armoured Cable GJYXCH 2B6 G657A2

Product Description

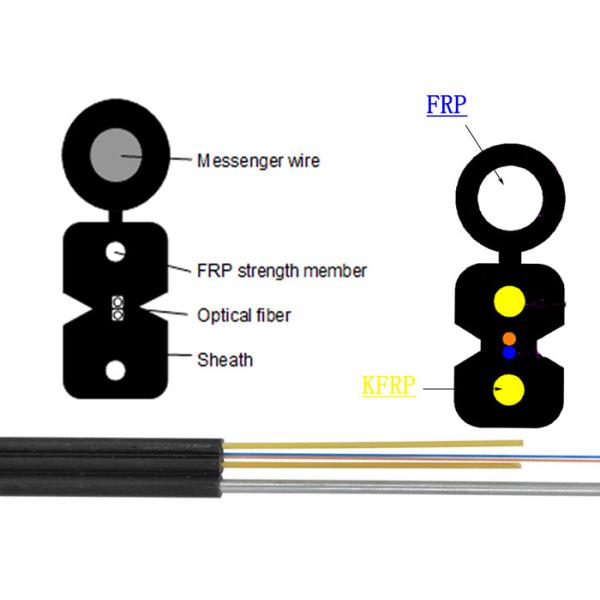

We have such suggestions for the material of the bow-type drop cables:

1 .The fiber must meet the standard of ITU-TG.657.A2. The min. bending radius of the fiber can be reached 7.5mm and it can totally compatibale with the G.652.D fiber. So it is suitable to be used indoor.

2. LSZH are used for the out sheathing of the optical fiber which can meet the safe request of the indoor cables.

3. As for the indoor-outdoor cables, only FRP can be used as the strengthen member which can avoid strong current flowing into indoor and ensure the safety.

4.The FRP strengthen material of optical fiber is made by KFPR and there are two kinds of FPR materials. One is GFRP and the other is KFRP. KFRP is better in its bendability and it can develop the bending character of the G.657.A2 fiber which can meet the request under the condition of cable' minor radius.

Features:

1. Simple structure,light weight and high tensile strength.

2. Special groove design,easily strip and splice, simplified installation and maintenance.

3. Two parallel steel wires ensure tensile.

4. Crush resistance and flexibility.

5. Low smoke zero halogen and flame retardant sheath, environment-friendly and good security.

Technology specification

PACKING:

1 Nominal shipping length of the cable will be 1~3 km. Other length is also available if required by buyer.

2 Each length of the cable will be wound on a separate strong wooden.

3 Both ends of the cable will be sealed with a suitable heat shrinkable cap to prevent the entry of moisture during transportation and storage.

4 The cable end will be securely fastened to the drum to prevent the cable from coming loose during transit or becoming loose during placing operations.

5 Circumference battens will be secured between the outer edges of the flange to protect the cable against damage during shipment and storage.

6 For testing purposes, the inner end of the cable will be recessed into a slot in the drum flange . A minimum length of one meter of cable at the inner end will be accessible.

7 The cable will be shipped on drums designed to prevent damage to the cable during shipment and installation

8 The minimum barrel diameter of the drum will be 30 times to the overall cable diameter.

KEXINT which was founded in the year 2007 is a high-tech enterprise specialized in telecom communication network equipment research and development (R&D), manufacturing, marketing, and providing application solutions and technical services .

Its main products include fiber optic cable, fiber distribution box, fiber optical patchcord , MPO/MTP , and optical splitter (PLC/FBT/WDM), fast connecter , fiber optic adapters, fiber optic attenuators ,We have more than 11 years of experience in passive fiber optic products . In 2016 , we also established OLT/ONU R&D and production. Products are widely used in telecommunications, broadcasting and other fields. Television, power engineering, and other industries. The main market distribution: Russia and other CIS, South Africa, Europe, South America, etc. The company promises: quality and integrity first

Rich experiences in passive production of fiber optical products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.
