2B9-251 Firestone Air Bag Suspension W01-358-6948 Goodyear Bellows Number 578-92-3-206

2B9-251 Firestone Air Bag Suspension W01-358-6948 Goodyear Bellows Number 578-92-3-206

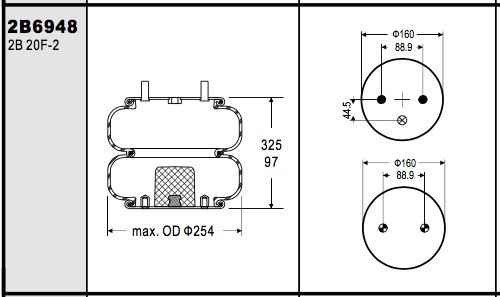

GUOMAT 2B6948 Specifications and Technical Data

Compressed Height: 3.12 inches /

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut: 44.5 mm

Top Cover Plate Screw (Nut) Tooth : 2X1/2-13UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

One hole in the middle of the Bottom Cover Plate:10.3

Rubber Bellows MAX Diameter: 262 mm

The Working Stroke : MAX 325 mm to MIN 95 mm

Gas Hole / Air inlet : 1/4 NPTF

Firestone Bellows Number: 20-2

Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206

Bellows NO.: 20-2

Assembly Weight: 8.1 lbs

Design Height: 9-11 inches

Loading Capacity at 20 psig: 648 lbsf

Loading Capacity at 60 psig: 1,944 lbsf

Loading Capacity at 90 psig: 2,916 lbsf

Maximum Diameter: 10.4 inches

Operating Temperature: 56Cº to -53Cº

Goodyear: 2B6948​ Cross others OEM

GUOMAT NO.2B6948

Firestone:W01-358-6948

Firestone:W01 358 6948

Firestone:W013586948
Contitech : FD 200-25 429

Contitech :FD200-25 429

Contitech :FD20025 429
Goodyear: 2B9-251

Goodyear:2B9251

Goodyear:2B9251
Goodyear Bellows: 578-92-3-206

Goodyear Bellows:578 92 3 206

Goodyear Bellows:578923206

Ridewell Number:1003586948C
Triangle Part Number:4429
Triangle Bellows Number:6332
Note:SILENT DRIVE

Description and application Of GUOMAT 2B6948 air spring:

This kind of GUOMAT 2B6948 that has two Two Pillars Nuts at the top of the Cover Plate And Two Blind Nuts at the bottom of the Cover Plate. one Gas Hole / Air inlet 1/4 NPTF at the side of the top of the cover plate.This air spring can be used on trailers for retrofitting. At the same time can be used in many industrial equipment.It is very convenient to install.

Firestone Bellows Number: 20-2
Goodyear Part Number: 2B9-251
Goodyear Bellows Number: 578-92-3-206
Reedwell ID: 1003586948C
Triangle part number: 4429
Triangle bellows: 6332
Air bomb 6948 AS6948 AB6948 AB-2B9-251 CS209251 10-96948 10035869480 E-FS6948 SC2123 10-96948 E-
FS6948 6948 AB-2B9-251 SC2123 1003586948C AB69484429
Goodyear Number: 2B9-251
Bellows type: double
Ultraman bellows number: SP2B12RA
Firestone Bellow ID: Wo1 358-6948
Goodyear skin capsule number: 578-92-3-206
Horse number: FD 200-25 429
Triangle bellows number: 6332
Floor / neutron type:
Top plate holes / studs: 2.
Roof diameter: 6.4
Top plate C to C diameter: 3-5
Bottom Hole Bolts: 2
Base plate diameter: 6.4.
Base plate C to C diameter: 3-5
Base plate part number:
Base plate alignment: parallel
Bumper: Yes
bracket:
Minimum height: 3.8
Maximum height: 12.2
