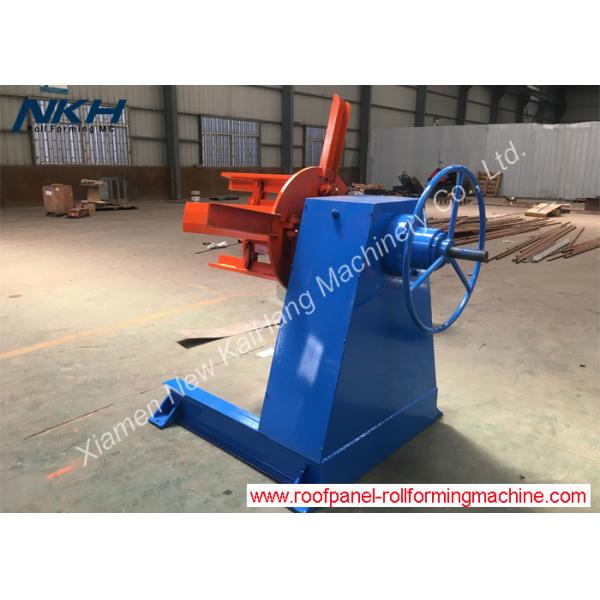

Drag Design Auxiliary Equipment Simple Manual Rack For C/ U/ Z Purlin Profiling Machine

Simple manual rack for C/ U/ Z purlin profiling machine, 5MT cap., drag design

Quick Detail:

1. Thickness : 1.6-3.0mm
2. Material : Galvanized Steel, G345
3. Input width : < 600mm
4. Material weight : 5MT
5. Coil inner diameter : 470-510mm

Application:

Manual un-coiler is always supplied to work with heavy-duty roll forming machines such as C/U/Z/L or Sigma or Omega profile machine or heavy-duty metal sheet embossing machine lines (sometimes customers may require a hydraulic un-coiler for regular roll forming machines as well,

Description/Technical Parameter details of the de-coiler

Un-powered; Load capacity= MAX.5Ton

Linked connected expanding design

Coil inner–diameter=470-510mm

Coil Width= MAX.600mm

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
