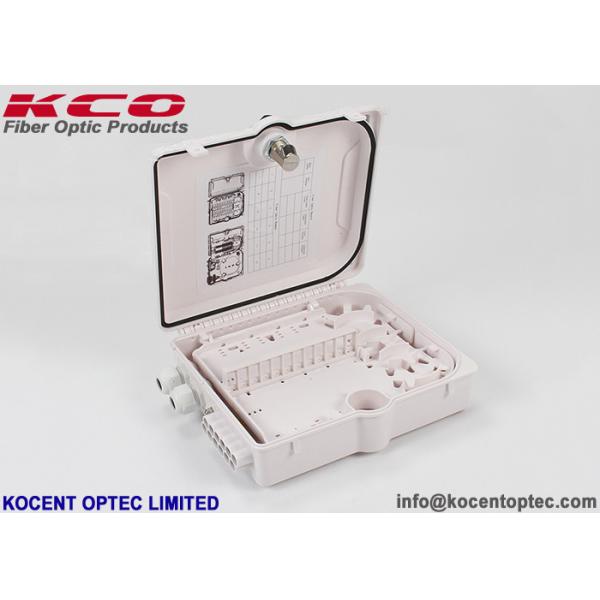

12 Port IP65 Outdoor Fiber Optic Terminal Box with ABS+PC Material for Wall or Pole Mount in FTTH Networks

IP65 Outdoor 12 Port Fibra Optica Box ODB FDB OTB NAP CTO / 1*8 Plc Splitter Terminal Box Descriptions:

Kocent Optec Limited is manufacturer of fiber optic distribution box. Our distrbution box series including plastic box, and steel tape box. We can supply the box for indoor and outdoor application. Capacity of box can make from 2 fibers to 144 fibers. Otherwise we also supply fiber optic distribution frame with maximum 2880 fiber and fiber optic cross cabinet with maximum 576 fibers.

KCO-FDB-0212X fiber optic distribution box is one of product in our plastic distribution box series, it is use for outdoor application. Can be wall mount or pole mount.

KCO-FDB-0212X fiber optic distribution box is able to hold up to 12 subscribers.

It is fiber optic distribution box and also splitter box too.

KCO-FDB-0212X is able to hold up to 12 subscribers. It can install maximum 12pcs of SC adapter.

It can install 1pc 1*4, 1*8 or 1*12 mini blockless type of plc splitter.

KCO-FDB-0212X series outdoor wall mount and pole mounted fiber optic termination box for FTTH drop cable entry or exist, it is available in 3 colors:

Black: KCO-FDB-0212XB

White: KCO-FDB-0212XW

Grey: KCO-FDB-0212XG

It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

KCO-FDB-0212X fiber optic distribution box is used for outdoor application, it can be wallmount or pole mount. Its waterproof class can meet IP65.

It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Feature:

1*8 splitter can be installed as an option
Manage fibers in a reasonable fiber radius cnodition
Easy to maintain and extend the capacity
Fiber bend radius control more than 40mm
Suitable for the fusion splice or mechanical splice
Efficient cable management
12 ports for drop cable outports
Waterproof design with IP-65 protection level.
Integrated with splice cassette and cable management rods.

Quick Information:

Item	Material	Size	Max Capacity
KCO-FDB-0212X	PC+ABS	24022070mm	SC 12ports	Tube PLC 1*12(SC)	Tube PLC 1*8(SC)

Function:

P/N: KCO-FDB-0212X
Material:
- ABS
- ABS+PC
Long life time: about 20 years
Can accommodate 1x4, 1x6, 1x8, 1x12 PLC splitter.
Rainfall resistant, IP65 outdoor using.
Can load 12pcs LC, FC, ST, SC, E2000 … adapters.
Installation:
- Wall mounting
- Pole mounting
The cover with 2 reinforcing closing pieces, easy to open and close.
02pcs cable entry ports (max. diameter 8mm cable) for cable entry without cutting;
12pcs exit ports for FTTH drop cable.

Products photos:

Specifications:

Model	KCO-FDB-0212X
Material	PC+ABS or ABS
Dimension	24022070mm
Cable Entry	2 cable entrance: 10-16.5mm
Drop cable port	12 ports
Applicable cable diameter	23mm FTTH drop cable, 25mm figure 24 FTTH drop cable
Max. Capacity	24 Fibers, 1 tray x 12F
Adapter	Max. 24pcs SC simplex (LC, FC, E2000,... optional)
Sealing structure	Mechanical sealing with PE waterproof sealing ring
PLC Splitter	Max. micro plug-in 1x24 Splitter
Color	Gray, White or Black
IP Grade	IP65
Operating Temperature	-40°C~+80°C
Relative Humidity	<95%(+40°C)
Insulated Resistance	>2x10MΩ/500V(DC)
Installation Method (in overstriking)	Floor Standing / Wall Mounted / Pole Mounted / Corridor Mounted / Mounted in Cabinet


*From:	Your email address is incorrect!
*To:	KOCENT OPTEC LIMITED
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Fiber Optic Terminal Box
Brand Name:	KCO, Kocent Optec Limited
Model Number:	KCO-FDB-0212X
Certification:	ISO9001
Place of Origin:	Guangdong, China
MOQ:	Negotiation
Price:	Negotiation
Payment Terms:	Western Union,T/T,L/C
Supply Ability:	20,000 pcs/ month
Delivery Time:	7~14 days after get payment
Packaging Details:	carton box, wooden pallet
Material:	ABS, ABS+PC
P/N:	KCO-FDB-0212X
Color:	White/ Black/ Customized
Connector:	SC, ST, LC, FC, E2000, etc
Application:	outdoor IP65
Capacity:	12 ports SC simplex or 12 ports LC duplex
Splitter type:	Mini blockless type
Splitter:	18 / 112
