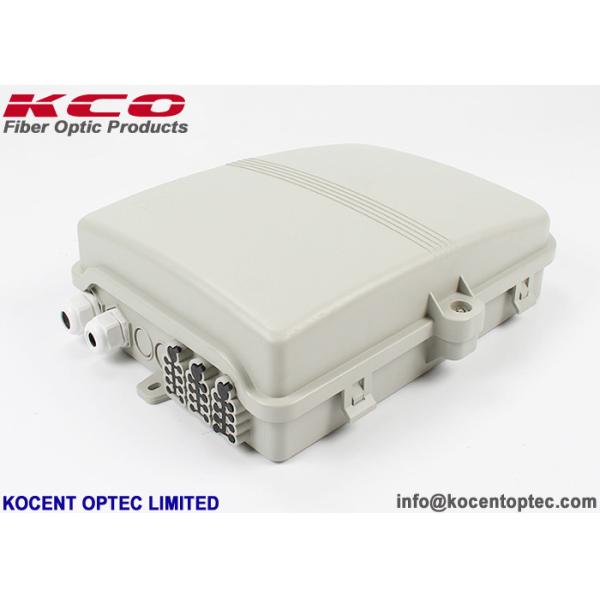

24 Port Fiber Optic Terminal Box with ABS+PC Material for Wall or Pole Mount Outdoor IP65 Enclosure

KCO-ODB-0424X Outdoor FTTH Optical Fibre Access Terminal Box / 24 Port ODB FDB CTO NAP

Kocent Optec Limited is supplier of passive fiber optic products.

Fiber optic distribution box series is one of our best advantage products.

With more than 50 set of box molds, we can supply many type of plastic distribution box and terminal box for all of FTTH project.

Our plastic distribution box can make by: ABS plastic, ABS+PC plastic, PP+fiber plastic, SMC plastic.

OEM and ODM service is opening for all of old and new customer. Contact with our sales team to get best support.

Descriptions:

KCO-ODB-0424X fiber optic distribution box is able to hold up to 24 subscribers.
It is fiber optic distribution box and also splitter box too. It can install maximum 24pcs of SC adapter. It can install 1pc 1*4, 1*8 or 1*12, 1*16 1*24 mini blockless type of plc splitter. Or 1*8 and 1*16 LGX box type of PLC Splitter
It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.
KCO-ODB-0424X fiber optic distribution box is used for outdoor application, it can be wallmount or pole mount. Its waterproof class can meet IP65.
KCO-FDB-0212X series outdoor wall mount and pole mounted fiber optic termination box for FTTH drop cable entry or exist, it is available in 3 colors:

KCO-ODB-0424X is able to hold up to 24 subscribers.
It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.
It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Feature:

Quick Information:

Item	Material	Size	Max Capacity
KCO-ODB-0414X	ABS	33027095mm	SC 24ports	LGX PLC 1*16(SC)	Tube PLC 1*24(SC)

Function:

P/N: KCO-ODB-0424X
Material:
- ABS
- ABS+PC
Long life time: about 20 years
Can accommodate 1x4, 1x6, 1x8, 1x12, 1x16, 1x24 PLC splitter.
Rainfall resistant, IP65 outdoor using.
Can load 24pcs LC, FC, ST, SC, E2000 … adapters.
Installation:
- Wall mounting
- Pole mounting
The cover with 2 reinforcing closing pieces, easy to open and close.
04pcs cable entry ports (max. diameter 8mm cable) for cable entry without cutting;
24pcs exit ports for FTTH drop cable.

Products photos:

optical termination box

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	KOCENT OPTEC LIMITED
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Fiber Optic Terminal Box
Brand Name:	KCO, Kocent Optec Limited
Model Number:	KCO-ODB-0424X
Certification:	ISO9001
Place of Origin:	Guangdong, China
MOQ:	Negotiation
Price:	Negotiation
Payment Terms:	Western Union,T/T,L/C
Supply Ability:	20,000 pcs/ month
Delivery Time:	7~14 days after get payment
Packaging Details:	carton box, wooden pallet
Material:	ABS, ABS+PC
P/N:	KCO-ODB-0424X
Color:	Gray, White/ Black/ Customized
Connector:	SC, ST, LC, FC, E2000, etc
Application:	outdoor IP65
Capacity:	24 ports SC simplex or 24 ports LC duplex
Splitter type:	Mini blockless type
Splitter:	18 / 112 / 116 /124
