| Categories | Mini ITX Motherboard |
|---|---|
| Model Number: | ITX-H310DL118-2HDMI |
| Place of Origin: | Guangdong, China |
| Brand Name: | Yanyue |
| Certification: | CE, FCC |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Packaging Details: | Wooden Box |
| Supply Ability: | motherboard 100000 pieces / month ; IPC 5000 sets / month |
| CPU/GPU: | 8th Generation Intel® Core™ Processor i7/ i5/ i3, Pentium®/ Celeron® (Socket LGA1151) |
| Chipset: | Intel@ PCH H310 |
| Memory: | 2 x DDR4 SO-DIMM sockets, supporting up to 32GB SDRAM |
| Storage: | 1×SATA ，1×M-SATA |
| Ethernet: | 1 Gigabit LAN |
| USB2.0: | 6 |
| USB3.0: | 2 |
| Audio: | Realtek ALC662, supports 5.1 channels |
| Company Info. |
| Shenzhen Yanyue Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

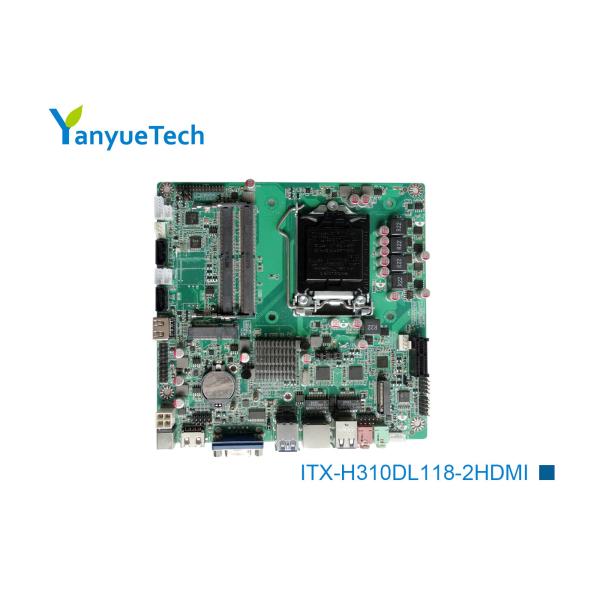

ITX-H310DL118-2HDMI Mini ITX Motherboard, Intel@ PCH H110 Chip, Support discrete graphics
Feature
■ Support discrete graphics
■ VGA, 2HDMI, LVDS Graphics Interface
■ 2 HDMI display together
■ 1LAN, 1COM, 6USB2.0, 2USB3.0
Specification
| CPU/GPU | 8th Generation Intel® Core™ Processor i7/ i5/ i3, Pentium®/ Celeron® (Socket LGA1151) | |||||
| Chipset | Intel@ PCH H310 | |||||
| Memory | 2 x DDR4 SO-DIMM sockets, supporting up to 32GB SDRAM | |||||
| Storage | 1×SATA ,1×M-SATA | |||||
| Audio | Realtek ALC662, supports 5.1 channels | |||||
| Ethernet | 1 Gigabit LAN | |||||
| Display | CPU integrated graphics | |||||
| Graphics Interface | VGA, 2×HDMI, LVDS | |||||
| USB2.0 | 6 | |||||
| USB3.0 | 2 | |||||
| COM | 1RS232 optional | |||||
| Backplane I / O | DC in, HDMI,VGA, 2USB3.0, RJ45 LAN, 2USB2.0, Line-out+Mic-in; added HDMI(in side) | |||||
| Board I / O Pin | 4USB2.0 , front audio , CLR_CMOS , CPU fan power , System fan power , Front panel , Speaker, 4P DC In, JHDMI(optional), JVGA(optional), COM | |||||
| Expand | 1 MINI PCIE | |||||
| System | Support Windows(WIN 10...), Linux | |||||
| Mechanical & Environmental | ||||||
| Power supply | DC12~19V | Heat dissipation | Fan | Size(L×W) | 170mm×170mm | |
| Working temperature | -15~55℃ | Storage temperature | -40~75℃ | Environmental humidity | 0~90% air humidity,no condensation | |
| Packing list | ITX-H310DL118-2HDMI motherboard ×1, Sata Data wire ×1, Sata Power wire×1 | |||||
|
