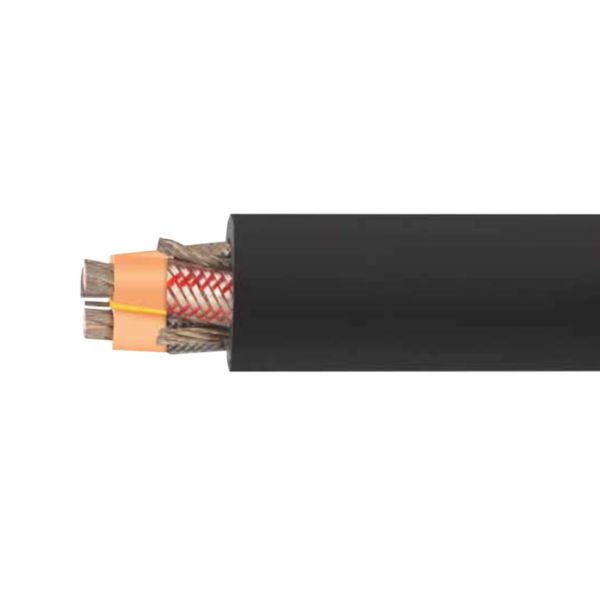

Extensible Ground Check 3 Conductor Power Cord With Reinforced Jacket

SHD-CGC Power, Shielded Round Portable w/Extensible Ground-Check, EPR/CPE 2000 Volts, 90˚C, Three Conductor power cable

Product Construction
Conductor:
• 1 AWG thru 500 kcmil coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation:
• Ethylene Propylene Rubber (EPR) insulation
Insulation Shield:
• A flexible coated copper/textile braid shield is applied over a non-conducting overlapped tape
Ground-Check Conductor:
• Coated copper, specially stranded to provide extensibility without sustaining tensile load, thereby providing maximum resistance to flex fatigue
• Insulated with high-strength polypropylene and placed in the center interstice
Grounding Conductors:
• Three coated copper, rope-lay-stranded per ASTM B172 in contact with the flexible braid shield
Jacket:
• Reinforced, two-layer, extra-heavy-duty, leadcured Chlorinated Polyethylene (CPE)
Options:
• Colored jackets are available
• TPU (Thermoplastic Polyurethane) jacket
• Anamaxx® jacket
Applications:
• Designed for use as a trailing cable on AC mining equipment:
- Where maximum safety is mandatory, including underground mining machines where induced voltages in an unbalanced grounding
system could be hazardous
- On low- and medium-voltage AC circuits where shielding is desired or required
Features:
• Flexible insulation shield provides shock hazard protection
• Symmetrical grounding system does not produce induced voltages when operating in a balanced 3-phase system
• Excellent heat, moisture, steam, oil, chemical and radiation resistance
Features (cont’d):
• Flexible for easy handling
• Resists cutting, impact, abrasion, flame and sunlight
• Excellent thermal stability and physical properties over a broad temperature range
• Two-layer jacket is reinforced to provide maximum protection from mechanical damage—the cause of most portable cable failures
Compliances:
• ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
• Meets flame test requirements and is accepted for listing by MSHA
• Approved by the Pennsylvania Department of Environmental Protection
Packaging:
• Material cut to length and shipped on nonreturnable reels
